OMS410 Datasheet - Omnirel

OMS410, (OMS410 / OMS510) MOSFET

OMS410 OMS410A OMS510 3 PHASE, LOW VOLTAGE, LOW RDS(on), MOSFET BRIDGE CIRCUIT IN A PLASTIC PACKAGE Three Phase, 100 Volt, 15 To 45 Amp Bridge With C.
This series of MOSFET switches is configured in a 3 phase bridge with a common VDD line, precision series shunt resistor in the source line, and a sen.

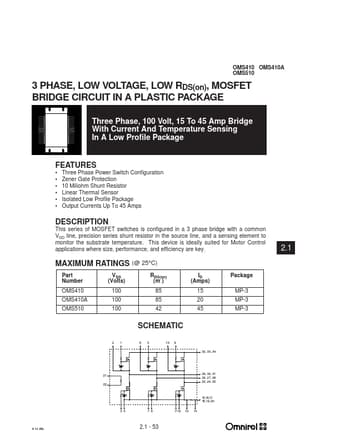

datasheet Preview Page 1 from Datasheet4u.com

OMS410_Omnirel.pdf

OMS410 Datasheet Preview — Preview of OMS410 PDF

Datasheet Details

Part number:

OMS410

Manufacturer:

Omnirel

File Size:

99.34 KB

Description:

(OMS410 / OMS510) MOSFET

Applications

* where size, performance, and efficiency are key. www. DataSheet. co. kr 2.1 MAXIMUM RATINGS (@ 25°C) Part Number OMS410 OMS410A OMS510 VDS (Volts) 100 100 100 RDS(on) (m ) 85 85 42 ID (Amps) 15 20 45 Package MP-3 MP-3 MP-3 SCHEMATIC 2 1 6 5 10 9 32, 33, 34 21 22 29, 30, 31 26, 27, 28 23, 24, 25 1
