D2F-01F-A1D2F-01 Datasheet - Omron

D2F-01F-A1D2F-01 Snap Action Switch

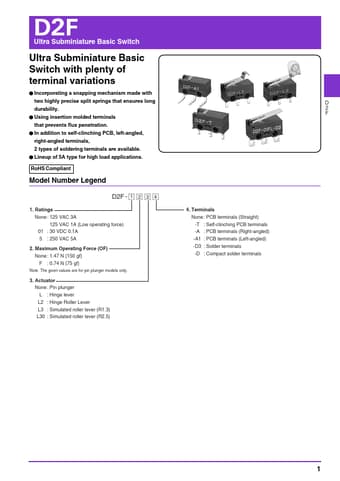

D2F Ultra Subminiature Basic Switch Ultra Subminiature Basic Switch with plenty of terminal variations Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability. Using insertion molded terminals that prevents flux penetration. In addition to self-clinching PCB, left-angled, right-angled terminals, 2 types of soldering terminals are available. Lineup of 5A type for high load applications. RoHS Compliant Model Number Legend D.

D2F-01F-A1D2F-01 Datasheet (830.73 KB)
