D2F-01FL-D3, D2F Snap Action Switch

📥 Download Datasheet  Datasheet Preview Page 1

Description

D2F Ultra Subminiature Basic Switch Ultra Subminiature Basic Switch with plenty of terminal variations * Incorporating a snapping mechanism made w.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D2F-01FL-D3, D2F. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
D2F-01FL-D3, D2F
Manufacturer
Omron
File Size
830.73 KB
Datasheet
D2F_Omron.pdf
Description
Snap Action Switch
Note
This datasheet PDF includes multiple part numbers: D2F-01FL-D3, D2F.
Please refer to the document for exact specifications by model.

Applications

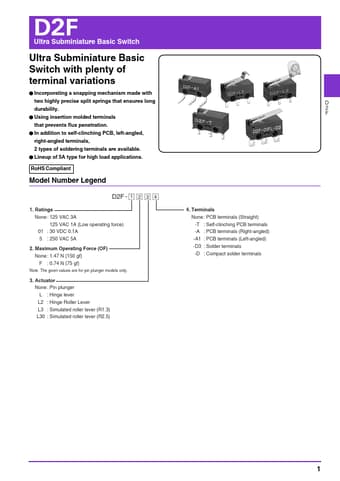

* RoHS Compliant Model Number Legend D2F - @1 @2 @3 @4 1. Ratings None : 125 VAC 3A 125 VAC 1A (Low operating force) 01 : 30 VDC 0.1A 5 : 250 VAC 5A 2. Maximum Operating Force (OF) None : 1.47 N {150 gf} F : 0.74 N {75 gf} Note. The given values are for pin plunger models only. 3. Actuator None : Pin
