D2HW-A211D Datasheet - Omron

D2HW-A211D Smallest Sealed Snap-Action Switch

D2HW Sealed Ultra Subminiature Basic Switch Smallest sealed snap-action switch in the industry with a very long stroke for reliable ON/OFF action O The case dimensions are 78% of conventional models, contributing to down-sizing of D mechanical modules. 2 O Extra-long stroke even without levers. H (OT reference value: 1.4 mm). W O Made of environmentally-friendly materials. All models are lead-free, including molded lead wire models. RoHS Compliant Model Number Legend D2HW - 1 2 3.

D2HW-A211D Datasheet (2.50 MB)

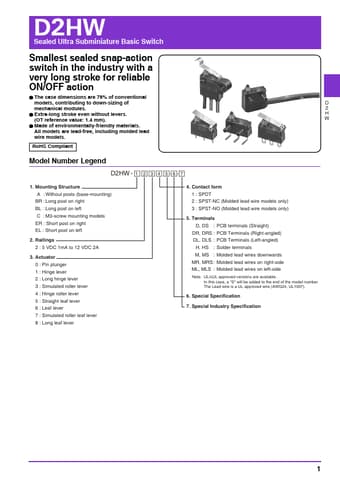

Preview of D2HW-A211D PDF

Datasheet Details

Part number:

D2HW-A211D

Manufacturer:

Omron

File Size:

2.50 MB

Description:

Smallest sealed snap-action switch.
