EY3A-3051 Datasheet - Omron

EY3A-3051 Multiple Beam Sensor

Multiple beam sensor Model EY3A-3051 * Electrical and Optical Characteristics (Ta = 0° C to 65° C) Item Power supply voltage Current consumption Peak current consumption Low-level output voltage High-level output voltage Response delay time (high to low) Response delay time (low to high) 5 V.

Multiple Beam Sensor (3 Beams: 50 mm) EY3A-3051 Dimensions Note: All units are in millimeters unless otherwise indicated. Positioning boss Center of detector 53325-0510 (Japan Molex) Center of emitter Pin no.1 3.2 +0.2 0 dia. 3 00.2 dia. Pin no. Remarks Name 1 O1 Output 1 (OUT 1) 2 O2 Output 2 (OUT 2) 3 O3 Output 3 (OUT 3) 4V Power supply (Vcc) 5G Ground (GND) Unless otherwise specified, the tolerances are as shown below. Dimensions Tolerance 3 mm max. ±0.3 3 <.

EY3A-3051 Features

* Simultaneously senses three objects positioned differently, thus saving space.

* Ensures higher sensitivity and external light interference resistivity than any other photomicrosensor.

* Narrow sensing range ensures stable sensing of a variety of sensing objects.

* Appl

EY3A-3051 Datasheet (82.36 KB)

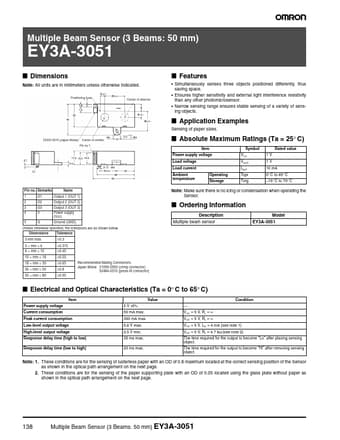

EY3A-3051 Datasheet Preview — Preview of EY3A-3051 PDF

Datasheet Details

Part number:

EY3A-3051

Manufacturer:

Omron

File Size:

82.36 KB

Description:

Multiple beam sensor.
