OB2212

Primary-Side Regulation PWM Power Switch

OB2212 Features

* including Cycle-by-Cycle current limiting, VDD over-voltage clamp and UVLO, fail-safe protection for open loop fault condition. Excellent EMI performance is achieved with On-Bright proprietary frequency shuffling technique together with soft switching control at the totem pole gate drive output with

OB2212 General Description

OB2211/OB2212 is an offline PWM Power switch for low power AC/DC charger and adaptor applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated from design. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrat.

OB2212 Datasheet (330.00 KB)

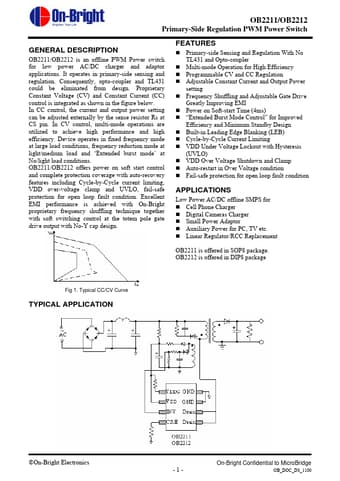

Preview of OB2212 PDF

Datasheet Details

Part number:

OB2212

Manufacturer:

On-Bright

File Size:

330.00 KB

Description:

Primary-side regulation pwm power switch.
