OB3370NCP - Cost Effective LED Controller

This page provides the datasheet information for the OB3370NCP, a member of the OB3370N-On Cost Effective LED Controller family.

Datasheet Summary

Description

OB3370N is a high integrated and cost effective Light Emitting Diode (LED) driver optimized for LCD monitor and LCD TV backlight application.

The OB3370N operates in voltage mode boost topology with fixed frequency to regulate the LED current.

Features

  • Voltage Mode PWM Controller.
  • Flexible Dimming Mode Control: | Internal burst dimming control | External burst (LPWM) dimming control.
  • 0-2V DC voltage direct dimming control without external circuits.
  • Output Over Voltage Protections.
  • Under Voltage Lockout.
  • Soft Start.

📥 Download Datasheet

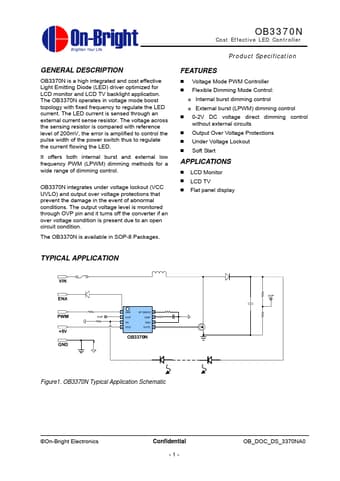

Datasheet preview – OB3370NCP

Datasheet Details

Part number OB3370NCP
Manufacturer On-Bright
File Size 405.08 KB
Description Cost Effective LED Controller
Datasheet download datasheet OB3370NCP Datasheet
Additional preview pages of the OB3370NCP datasheet.

📁 Similar Datasheet

  • OB33 - 4.0 mA output pad cell (austriamicrosystems)
  • OB3302 - Cost Effective CCFL Controller (GreenEngine)
  • OB3306 - High Integrated LCD Monitor Backlight Inverter Controller (GreenEngine)
  • OB3 - Voltage Regulator (TUNG-SOL)
Other Datasheets by On-Bright
  • OB3370N - Cost Effective LED Controller
  • OB3372 - High Power Dual output LED Driver
  • OB3375 - High performance buck LED driver
  • OB3379YCP-D - High performance buck LED driver
  • OB3379YCPA-D - High performance buck LED driver
  • OB3379ZCP-D - High performance buck LED driver
  • OB3379ZCPA-D - High performance buck LED driver
  • OB3309 - Highly Integrated U Type CCFL Backlight Controller

Full PDF Text Transcription

Click to expand full text
OB3370N Cost Effective LED Controller GENERAL DESCRIPTION OB3370N is a high integrated and cost effective Light Emitting Diode (LED) driver optimized for LCD monitor and LCD TV backlight application. The OB3370N operates in voltage mode boost topology with fixed frequency to regulate the LED current. The LED current is sensed through an external current sense resistor. The voltage across the sensing resistor is compared with reference level of 200mV, the error is amplified to control the pulse width of the power switch thus to regulate the current flowing the LED. It offers both internal burst and external low frequency PWM (LPWM) dimming methods for a wide range of dimming control.
