OB5282A

High Voltage Green Mode PWM Controller

OB5282A Datasheet (755.50 KB)

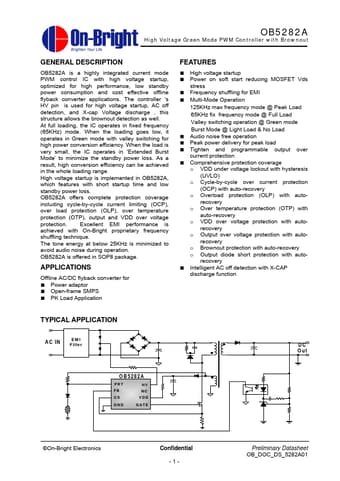

Preview of OB5282A PDF Datasheet

Datasheet Details

Part number:

OB5282A

Manufacturer:

On-Bright

File Size:

755.50 KB

Description:

High voltage green mode pwm controller.

OB5282A Features

* with short startup time and low standby power loss. OB5282A offers complete protection coverage including cycle-by-cycle current limiting (OCP), over load protection (OLP), over temperature protection (OTP), output and VDD over voltage protection. Excellent EMI performance is achieved with On-Bright

OB5282A General Description

OB5282A is a highly integrated current mode PWM control IC with high voltage startup, optimized for high performance, low standby power consumption and cost effective offline flyback converter applications. The controller ‘s HV pin is used for high voltage startup, AC off detection, and X-cap Voltag.
