OSTB8CS2C2B - 3.5x2.8x1.9mm Red & Pure Green & Blue SMD LED

📥 Download Datasheet

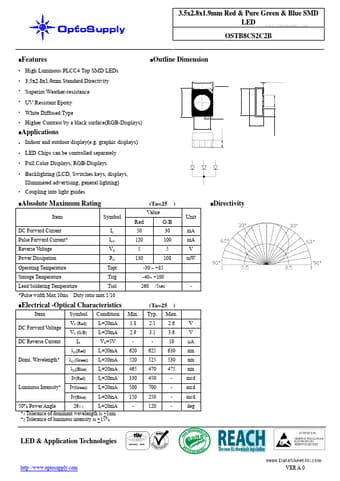

OSTB8CS2C2B Datasheet Preview — Preview of OSTB8CS2C2B PDF

Datasheet Details

Part number	OSTB8CS2C2B
Manufacturer	OptoSupply International
File Size	131.67 KB
Description	3.5x2.8x1.9mm Red & Pure Green & Blue SMD LED
Datasheet	OSTB8CS2C2B_OptoSupplyInternational.pdf

OSTB8CS2C2B Product details

Features

Outline Dimension High Luminous PLCC4 Top SMD LEDs 3.5x2.8x1.9mm Standard Directivity Superior Weather-resistance UV Resistant Epoxy White Diffused Type Higher Contrast by a black surface(RGB-Displays) Indoor and outdoor display(e. g. graphic displays) LED Chips can be controlled separately Full Color Displays, RGB-Displays Backlighting (LCD, Switches keys, displays, Illuminated advertising, general lighting) Coupling into light guides.
Applic.
