OSR5PAA131A-12V, OSR5RUA131A-12V - 10mm 12V Resistor LED

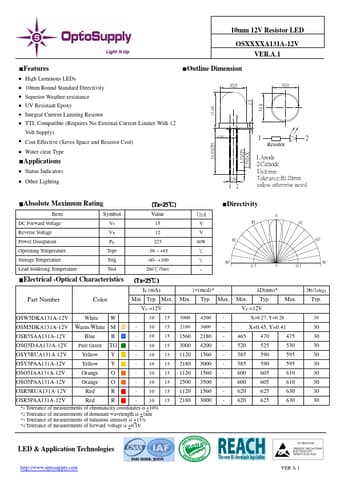

OSR5PAA131A-12V Description

10mm 12V Resistor LED OSXXXXA131A-12V VER.A.1 *.

OSR5PAA131A-12V Features

* High Luminous LEDs
* 10mm Round Standard Directivity
* Superior Weather-resistance
* UV Resistant Epoxy
* Integral Current Limiting Resistor
* TTL Compatible (Requires No External Current Limiter With 12 Volt Supply)
* Cost Effective (Saves Space and Resistor Cost)

OSR5PAA131A-12V Applications

* Status Indicators
* Other Lighting
* Outline Dimension 10.0 13.65 2.0 10.8 10.0 0.5±0.1 IN 26.0M 2.54 12 12 Resistor IN 1.5M X A 1.5M 1.Anode 2.Cathode Unit:mm Tolerance:±0.20mm unless otherwise noted
* Absolute Maximum Rating Item Symbol DC Forward Voltage VF (Ta=25℃

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OSR5PAA131A-12V, OSR5RUA131A-12V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
OSR5PAA131A-12V, OSR5RUA131A-12V
Manufacturer
OptoSupply
File Size
124.44 KB
Datasheet
OSR5RUA131A-12V-OptoSupply.pdf
Description
10mm 12V Resistor LED
Note
This datasheet PDF includes multiple part numbers: OSR5PAA131A-12V, OSR5RUA131A-12V.
Please refer to the document for exact specifications by model.
