Datasheet Details
- Part number
- OSW5DKA131A-12V
- Manufacturer
- OptoSupply
- File Size
- 132.23 KB
- Datasheet
- OSW5DKA131A-12V-OptoSupply.pdf
- Description
- 10mm 12V Resistor LED
OSW5DKA131A-12V Description

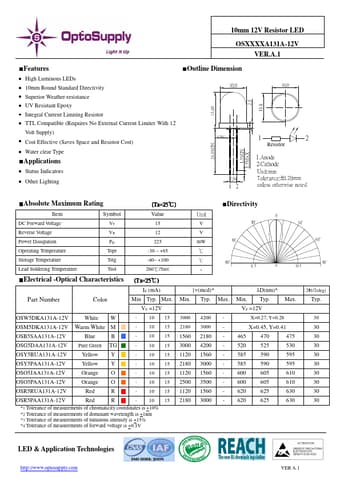

10mm 12V Resistor LED OSXXXXA131A-12V VER.A.1 *.
OSW5DKA131A-12V Features
* High Luminous LEDs
* 10mm Round Standard Directivity
* Superior Weather-resistance
* UV Resistant Epoxy
* Integral Current Limiting Resistor
* TTL Compatible (Requires No External Current Limiter With 12
Volt Supply)
* Cost Effective (Saves Space and Resistor Cost)
OSW5DKA131A-12V Applications
* Status Indicators
* Other Lighting
* Outline Dimension
10.0 13.65 2.0 10.8
10.0
0.5±0.1
IN 26.0M
2.54
12
12
Resistor
IN 1.5M
X A 1.5M
1.Anode 2.Cathode
Unit:mm
Tolerance:±0.20mm
unless otherwise noted
* Absolute Maximum Rating
Item Symbol
DC Forward Voltage
VF
(Ta=25℃
