ODM20416, ODM-20416 Datasheet - Oriole

ODM20416 Alphanumeric LCD Module

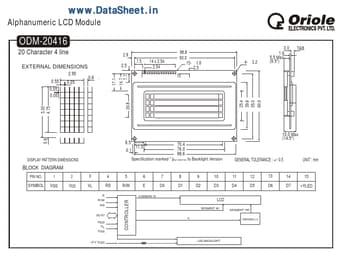

Alphanumeric LCD Module ODM-20416 20 Character 4 line EXTERNAL DIMENSIONS 2.95 0.55 0.55 0.05 0.05 2.9 7.5 2.5 14 x 2.54 2.54 98.8 93.0 15-Æ 1.0 2.5 15 4-Æ 3.2 3.0 1.6 5.5 Max (9.5 ) TAB 17.1 0.6 14.7 7.7 1 5.35 4.75 20.8 25.4 39.6 55.0 60.0 0.6 10.0 Max (14.5 ) 8.5 0.1 70.4 76.0 98.6 Specification marked pertains to Backlight Version 11.3 DISPLAY PATTERN DIMENSIONS GENERAL TOLERANCE : +/- 0.5 UNIT : mm BLOCK DIAGRAM PIN NO. 1 2 VDD 3 VL E R/W RS D0-D7 VDD VL V.

ODM-20416_Oriole.pdf

ODM20416 Datasheet Preview — This datasheet PDF includes multiple part numbers: ODM20416, ODM-20416. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ODM20416, ODM-20416

Manufacturer:

Oriole

File Size:

22.78 KB

Description:

Alphanumeric lcd module.

Note:

This datasheet PDF includes multiple part numbers: ODM20416, ODM-20416.
Please refer to the document for exact specifications by model.
