LT5433 - Hyper Bright LED

Datasheet Summary

Features

package: clear 5 mm (T1 ¾) package.
feature of the device: narrow viewing angle.
wavelength: 470 nm (blue), 505 nm (verde), 528 nm (true green).
viewing angle: 40°.
technology: InGaN.
optical efficiency: 2 lm/W (blue), 6 lm/W (verde), 8 lm/W (true green).
grouping parameter: luminous intensity, wavelength.
soldering methods: TTW soldering.
packing: bulk, available taped on reel.
ESD-withstand voltage: up t.

Osram Opto Semiconductors

📥 Download Datasheet

Datasheet Details

Part number	LT5433
Manufacturer	Osram Opto Semiconductors
File Size	180.50 KB
Description	Hyper Bright LED
Datasheet	LT5433 Datasheet
Additional preview pages of the LT5433 datasheet.

📁 Similar Datasheet

LT543 - LED Lamp (LED Technology)
LT5431 - LED Lamp (FEM)
LT5400 - Quad Matched Resistor Network (Linear Technology)
LT5401 - Matched Resistor Network (Analog Devices)
LT542 - LED Lamp (LED Technology)
LT542 - LED Lamp (ETC)
LT5.5MB - Ceramic Filters (Token)
LT5016ED - Dot Matrix LED (Sharp Electrionic Components)
LT5017ED - Dot Matrix LED (Sharp Electrionic Components)
LT5021-41 - STANDARD LED LAMP (Ledtech)

Other Datasheets by Osram Opto Semiconductors

Full PDF Text Transcription

Click to expand full text

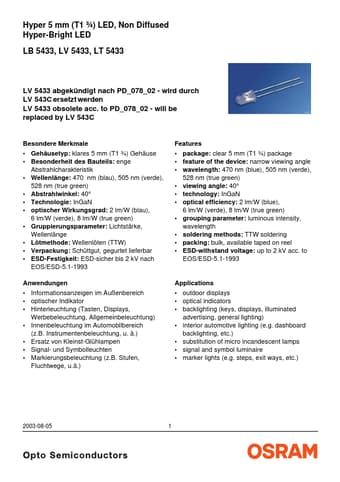

Hyper 5 mm (T1 ¾) LED, Non Diffused Hyper-Bright LED LB 5433, LV 5433, LT 5433 LV 5433 abgekündigt nach PD_078_02 - wird durch LV 543C ersetzt werden LV 5433 obsolete acc. to PD_078_02 - will be replaced by LV 543C Besondere Merkmale • Gehäusetyp: klares 5 mm (T1 ¾) Gehäuse • Besonderheit des Bauteils: enge Abstrahlcharakteristik • Wellenlänge: 470 nm (blau), 505 nm (verde), 528 nm (true green) • Abstrahlwinkel: 40° • Technologie: InGaN • optischer Wirkungsgrad: 2 lm/W (blau), 6 lm/W (verde), 8 lm/W (true green) • Gruppierungsparameter: Lichtstärke, Wellenlänge • Lötmethode: Wellenlöten (TTW) • Verpackung: Schüttgut, gegurtet lieferbar • ESD-Festigkeit: ESD-sicher bis 2 kV nach EOS/ESD-5.
