OTSW100 DC to 40GHz SPDT Switch

OTSW100 Description

DC to 40 GHz SPDT Switch OTSW100 Datasheet .
The OTSW100 is a wideband SPDT RF switch that operates from DC to 40 GHz.

OTSW100 Features

* DC to 40 GHz Frequency Range
* Insertion Loss: < 1.5 dB
* Isolation: > 35 dB
* IIP3: > 40 dBm
* Switching Time: 175 ns typical
* Control Voltage: +/- 2.5 V
* SOI Technology
* Flip Chip C4 Bump
* Die Dimension: 2.546 mm x 2.161

OTSW100 Applications

* Aerospace & Defense
* Wireless Infrastructure
* Satellite Communication
* Instrumentation
* Automotive Otava, Inc. / 26 E 2nd Street, Suite D / Moorestown, NJ 08057 RevB | Page 1 of 7 OTSW100 Datasheet Table of Contents Revision History 2 Specifications 3

📥 Download Datasheet

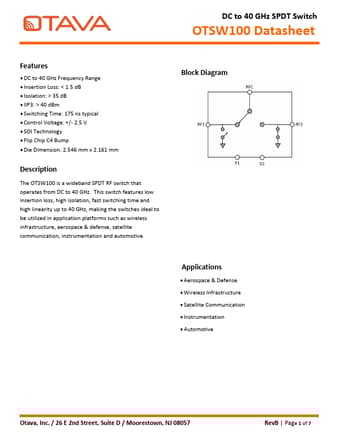

OTSW100 Datasheet Preview — Preview of OTSW100 PDF

Datasheet Details

Part number: OTSW100
Manufacturer: Otava
File Size: 419.76 KB
Datasheet: OTSW100-Otava.pdf
Description: DC to 40GHz SPDT Switch
