SK59C Surface Mount Schottky Barrier Rectifier

SK59C Description

SK52C thru SK510C www.DataSheet4U.com SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 1000 VOLTS CURRENT - 5.0 AMPERES SMC/DO-214AB .108(2.7.

SK59C Applications

* Low profile package Built-in strain relief Metal to silicon rectifier, majority carrier conduction Low power loss, high efficiency High surge capability For use in low voltage high frequency inverters, free wheeling, and polarity protection applications High temperature soldering guaranteed 260oC/10

📥 Download Datasheet

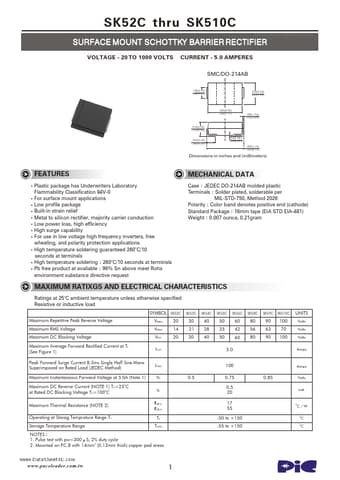

Preview of SK59C PDF
datasheet Preview Page 2

Datasheet Details

Part number
SK59C
Manufacturer
PACELEADER INDUSTRIAL
File Size
266.55 KB
Datasheet
SK59C_PACELEADERINDUSTRIAL.pdf
Description
Surface Mount Schottky Barrier Rectifier
