SB20200

Schottky Barrier Rectifiers

SB20200 Features

* ‧Low forward voltage drop ‧High current capability ‧High reliability ‧High surge current capability .114(2.92) .080(2.05) Dimensions in inches and (millimeters) MECHANICAL DATA ‧Case: TO-220AC ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating

SB20200 Datasheet (179.29 KB)

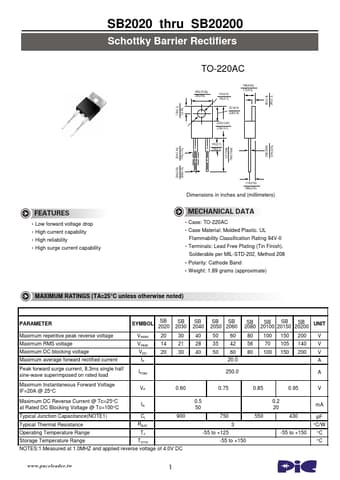

Preview of SB20200 PDF

Datasheet Details

Part number:

SB20200

Manufacturer:

PACELEADER

File Size:

179.29 KB

Description:

Schottky barrier rectifiers.
SB2020 thru SB20200 Schottky Barrier Rectifiers .129(3.3) .1(2.54) TO-220AC .403(10.26) .385(9.8) .153(3.9) .145(3.7) .189(4.82) .173(4.4) .251(.
