1.5SMC100C Datasheet GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Manufacturer: PanJit Semiconductor

Download the 1.5SMC100C datasheet PDF. This datasheet also includes the 1.5SMC6.8 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

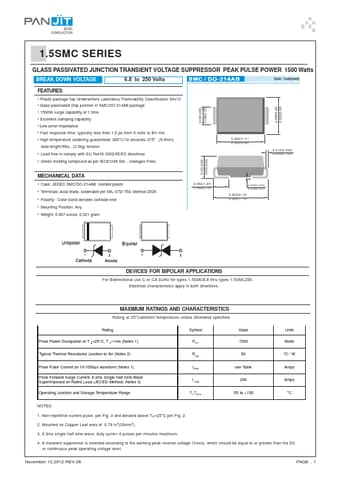

1.5SMC100C glass passivated junction transient voltage suppressor by PanJit Semiconductor - Datasheet Preview — Note: The manufacturer provides a single datasheet file (1.5SMC6.8-PANJIT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	1.5SMC100C
Manufacturer	PanJit Semiconductor
File Size	114.47 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	1.5SMC100C Datasheet

Overview

1.5SMC SERIES GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR PEAK PULSE POWER 1500 Watts BREAK DOWN VOLTAGE 6.

Key Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Glass passivated chip junction in SMC/DO-214AB package.
1500W surge capability at 1.0ms.
Excellent clamping capability.
Low zener impedance.
Fast response time: typically less than 1.0 ps from 0 volts to BV min.
High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
Lead free in comply with EU R.
