1.5SMC11, 1.5SMC6.8 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

PAN JIT

📥 Download Datasheet

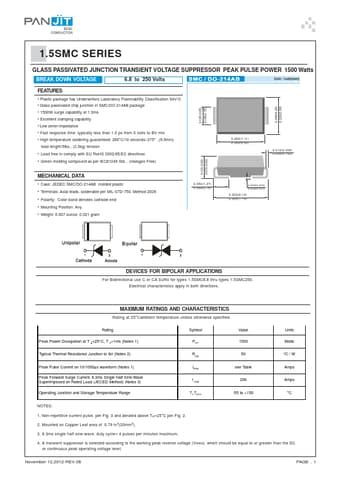

1.5SMC11 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1.5SMC11, 1.5SMC6.8. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 1.5SMC11, 1.5SMC6.8
Manufacturer: PAN JIT
File Size: 114.47 KB
Datasheet: 1.5SMC6.8-PANJIT.pdf
Description: GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Note: This datasheet PDF includes multiple part numbers: 1.5SMC11, 1.5SMC6.8.
Please refer to the document for exact specifications by model.

1.5SMC11 Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Glass passivated chip junction in SMC/DO-214AB package.
1500W surge capability at 1.0ms.
Excellent clamping capability.
Low zener impedance.
Fast response time: typically less than 1.0 ps from 0 volts to BV min.
High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
Lead free in comply with EU R.
