1.5SMCJ7.5A, 1.5SMCJ5.0 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

1.5SMCJ7.5A Description

1.5SMCJ SERIES SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR PEAK PULSE POWER 1500 Watt STAND-OFF VOLTAGE 5 to 220 Volt Recongnized File # E210467 F.

1.5SMCJ7.5A Applications

* in order to optimize board space.
* Glass passivated junction
* Low inductance
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* High temperature soldering : 260°C /10 seconds at terminals
* ESD IEC-61000-4-2 Air + 30kV, Contact

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1.5SMCJ7.5A, 1.5SMCJ5.0. Please refer to the document for exact specifications by model.

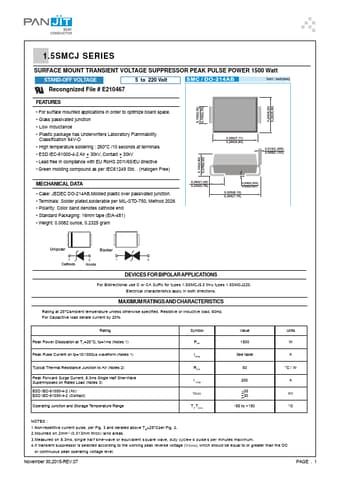

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1.5SMCJ7.5A, 1.5SMCJ5.0
Manufacturer
PAN JIT
File Size
1.19 MB
Datasheet
1.5SMCJ5.0-PANJIT.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: 1.5SMCJ7.5A, 1.5SMCJ5.0.
Please refer to the document for exact specifications by model.
