BAS70S-AU - SURFACE MOUNT SCHOTTKY DIODES

This page provides the datasheet information for the BAS70S-AU, a member of the BAS70-AU SURFACE MOUNT SCHOTTKY DIODES family.

Features

  • Fast switching speed.
  • Surface mount package ideally suited for automatic insertion Electrical identical standard JEDEC.
  • Acquire quality system certificate : TS16949.
  • AEC-Q101 qualified.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

Datasheet preview – BAS70S-AU

Datasheet Details

Part number BAS70S-AU
Manufacturer PanJit Semiconductor
File Size 264.81 KB
Description SURFACE MOUNT SCHOTTKY DIODES
Datasheet download datasheet BAS70S-AU Datasheet

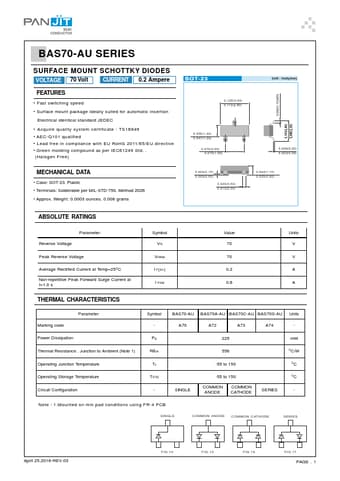

Additional preview pages of the BAS70S-AU datasheet.
