ER1001ACT

The ER1001ACT is SUPERFAST RECOVERY RECTIFIERS designed by PAN JIT.

Product Overview

PAN JIT

Part number	ER1001ACT, ER1000CT
Manufacturer	PAN JIT
File Size	89.67 KB
Description	SUPERFAST RECOVERY RECTIFIERS
Datasheet	ER1000CT-PANJIT.pdf
Note	This datasheet PDF includes multiple part numbers: ER1001ACT, ER1000CT. Please refer to the document for exact specifications by model.

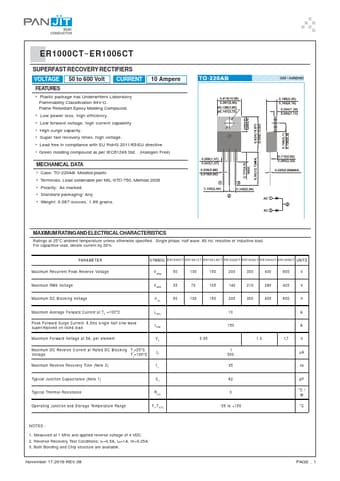

Additional preview pages of the ER1001ACT datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
Low power loss, high efficiency.
Low forward voltage, high current capability.
High surge capacity.
Super fast recovery times, high voltage.
Lead free in compliance with EU RoHS 2011/65/EU directive.
Green molding compound as per IEC61249 Std. . (Halogen Free).
