GBPC3508, GBPC35005-PAN HIGH CURRENT SILICON BRIDGE RECTIFIER

GBPC3508 Description

DATA SHEET GBPC35005~GBPC3508 HIGH CURRENT SILICON BRIDGE RECTIFIER VOLTAGE - 50 to 800 Volts CURRENT - 35 Amperes GPBC Unit: inch ( mm ) .25(6.35.

GBPC3508 Features

* Plastic material has Underwriters Laboratory Flammability Classification 94V-O
* The plastic package has Underwriters Laboratory Flammability Classification 94V-O.
* Surge overload ratings to 400 Amperes . MECHANICALDATA Case:Molded plastic with heatsink integrally mounthed

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC3508, GBPC35005-PAN. Please refer to the document for exact specifications by model.

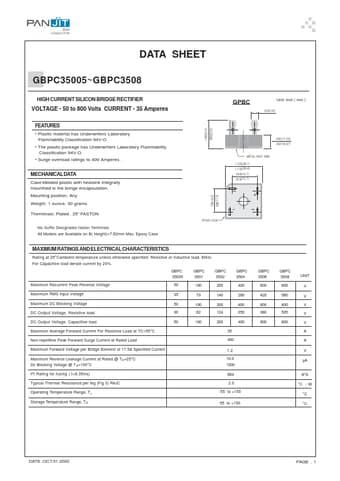

datasheet Preview Page 2

Datasheet Details

Part number
GBPC3508, GBPC35005-PAN
Manufacturer
PAN-JIT
File Size
32.45 KB
Datasheet
GBPC35005-PAN-JIT.pdf
Description
HIGH CURRENT SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBPC3508, GBPC35005-PAN.
Please refer to the document for exact specifications by model.
