GS1D-AU, GS1A-AU - SURFACE MOUNT RECTIFIER

GS1D-AU Description

GS1A-AU~GS1M-AU SURFACE MOUNT RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere .

GS1D-AU Applications

* in order to optimize board space
* Easy pick and place
* Plastic package has underwriters laboratory flammability Classification 94V-O
* Low forward drop
* High temperature soldering : 260°C /10 seconds at terminals
* Glass passivated chip junction
* A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS1D-AU, GS1A-AU. Please refer to the document for exact specifications by model.

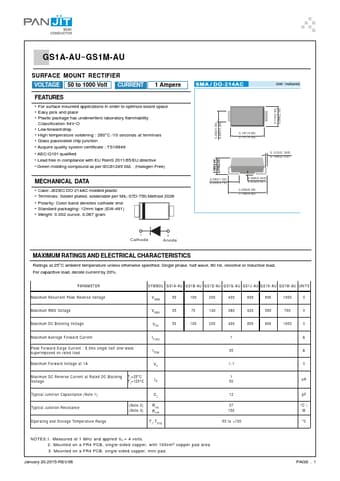

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS1D-AU, GS1A-AU
Manufacturer
PAN JIT
File Size
153.00 KB
Datasheet
GS1A-AU-PANJIT.pdf
Description
SURFACE MOUNT RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GS1D-AU, GS1A-AU.
Please refer to the document for exact specifications by model.
