MMSZ5260A Datasheet - PAN JIT

MMSZ5260A SURFACE MOUNT SILICON ZENER DIODES

MMSZ5260A Features

* Planar Die construction

* 500mW Power Dissipation

* Ideally Suited for Automated Assembly Processes

* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA

* Case: SOD-123, Molded Plastic

* Terminals: Solderable per MIL-STD-750, Method 20

MMSZ5260A Datasheet (71.87 KB)

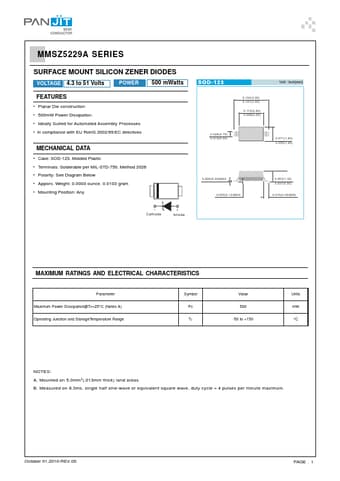

Preview of MMSZ5260A PDF
MMSZ5260A Datasheet Preview Page 2 MMSZ5260A Datasheet Preview Page 3

Datasheet Details

Part number:

MMSZ5260A

Manufacturer:

PAN JIT

File Size:

71.87 KB

Description:

Surface mount silicon zener diodes.
