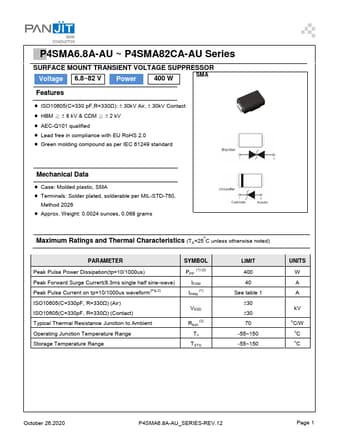

P4SMA82CA-AU, P4SMA6.8A-AU - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

PAN JIT

Datasheet Details

Part number	P4SMA82CA-AU, P4SMA6.8A-AU
Manufacturer	PAN JIT
File Size	594.70 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P4SMA6.8A-AU-PANJIT.pdf
Note	This datasheet PDF includes multiple part numbers: P4SMA82CA-AU, P4SMA6.8A-AU. Please refer to the document for exact specifications by model.

ISO10605(C=330 pF,R=330Ω): ± 30kV Air, ± 30kV Contact.
HBM ≧ ± 8 kV & CDM ≧ ± 2 kV.
AEC-Q101 qualified.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard Mechanical Data.
Case: Molded plastic, SMA.
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Approx. Weight: 0.0024 ounces, 0.068 grams Maximum Ratings and Thermal Characteristics o (TA=25 C unless otherwise noted).
