S5D SURFACE MOUNT RECTIFIER

PAN JIT

S5D Description

S5A SERIES SURFACE MOUNT RECTIFIER VOLTAGE 50~1000 Volt CURRENT 5 Ampere .

S5D Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

S5D Applications

* Easy pick and place
* Glass passivated iunction
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA
* Case: JEDEC SMC / DO-214AB molded plastic
* Terminals: Solde

📥 Download Datasheet

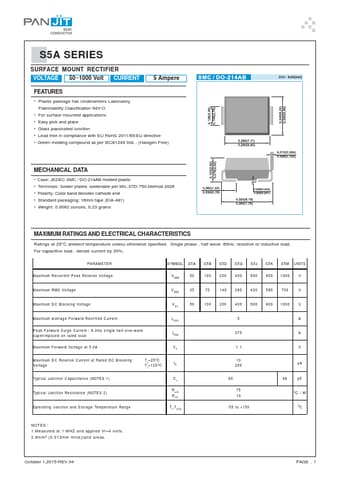

S5D Datasheet Preview — Preview of S5D PDF

Datasheet Details

Part number: S5D
Manufacturer: PAN JIT
File Size: 197.34 KB
Datasheet: S5D-PANJIT.pdf
Description: SURFACE MOUNT RECTIFIER
