S5G, SURFACE MOUNT RECTIFIER

S5A SERIES SURFACE MOUNT RECTIFIER VOLTAGE 50~1000 Volt CURRENT 5 Ampere .

S5G-PANJIT.pdf

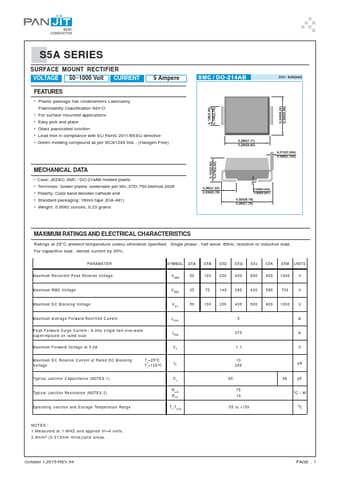

S5G Datasheet Preview — Preview of S5G PDF

Datasheet Details

Part number:

S5G

Manufacturer:

PAN JIT

File Size:

197.34 KB

Description:

SURFACE MOUNT RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Easy pick and place
* Glass passivated iunction
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA
* Case: JEDEC SMC / DO-214AB molded plastic
* Terminals: Solde
