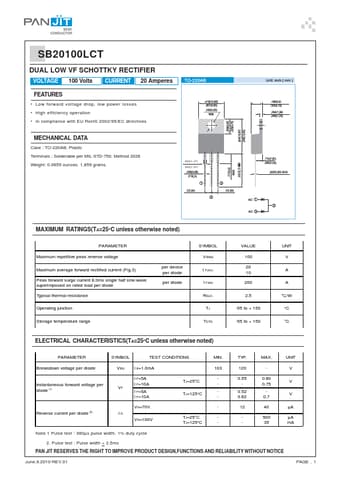

SB20100LCT
DUAL LOW VF SCHOTTKY RECTIFIER
VOLTAGE 100 Volts CURRENT 20 Amperes
FEATURES
• Low forward voltage drop, low power losses • High efficiency operation • In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA
Case : TO-220AB, Plastic Terminals : Solderable per MIL-STD-750, Method 2026 Weight: 0.0655 ounces, 1.859 grams.
.058(1.47) .042(1.07)
MAXIMUM RATINGS(TA=25oC unless otherwise noted)
PARAMETER Maximum repetitive peak reverse voltage
Maximum average forward rectified current (Fig.3) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load per diode Typical thermal resistance
Operating junction
Storage temperature range
per device per diode
per diode
SYMBOL VRRM I F(AV) I FSM RΘJC TJ TSTG
VALUE 100 20 10 200
2.
