SB380 - SCHOTTKY BARRIER RECTIFIERS

This page provides the datasheet information for the SB380, a member of the SB320 SCHOTTKY BARRIER RECTIFIERS family.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • For use in low voltage,high frequency inverters ,free wheeling , and polarity protection.

📥 Download Datasheet

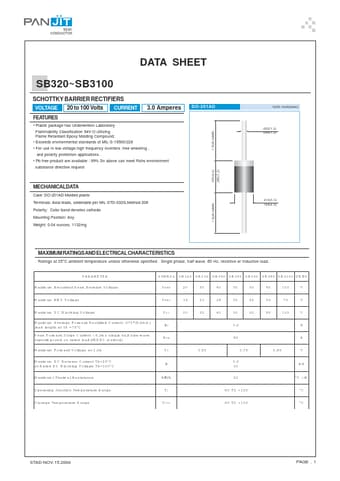

Datasheet preview – SB380

Datasheet Details

Part number SB380
Manufacturer PAN JIT
File Size 74.26 KB
Description SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet SB380 Datasheet
Additional preview pages of the SB380 datasheet.

📁 Similar Datasheet

  • SB380 - 3.0A SCHOTTKY BARRIER RECTIFIER (DIODES)
  • SB380 - Schottky Rectifier (SIRECT)
  • SB380 - SCHOTTKY BARRIER RECTIFIER DIODE (EIC)
  • SB380 - Schottky Rectifiers (Fairchild Semiconductor)
  • SB380 - MEDIUM CURRENT SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
  • SB380 - 3.0A SCHOTTKY BARRIER DIODE (WON-TOP)
  • SB380 - SCHOTTKY BARRIER RECTIFIER (ZOWIE)
  • SB380 - SCHOTTKY BARRIER RECTIFIER (BL GALAXY ELECTRICAL)
  • SB380 - SCHOTTKY BARRIER RECTIFIERS (SEMTECH)
  • SB380 - Schottky Diodes (Kexin)
Other Datasheets by PAN JIT
  • SB3020ST - SCHOTTKY BARRIER RECTIFIERS
  • SB3030ST - SCHOTTKY BARRIER RECTIFIERS
  • SB3040 - SCHOTTKY BARRIER RECTIFIERS
  • SB3040ST - SCHOTTKY BARRIER RECTIFIERS
  • SB3045ST - SCHOTTKY BARRIER RECTIFIERS
  • SB3050ST - SCHOTTKY BARRIER RECTIFIERS
  • SB3060ST - SCHOTTKY BARRIER RECTIFIERS
  • SB3100 - SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text
DATA SHEET SB320~SB3100 SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT 3.0 Amperes FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • For use in low voltage,high frequency inverters ,free wheeling , and polarity protection applications . • Pb free product are available : 99% Sn above can meet Rohs environment substance directive request DO-201AD 1.0(25.4)MIN. 1.0(25.4)MIN. MECHANICALDATA Case: DO-201AD Molded plastic Terminals: Axial leads, solderable per MIL-STD-202G,Method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.04 ounces, 1132mg .375(9.5) .285(7.2) Unit: inch(mm) .052(1.3) .048(1.2) .210(5.
