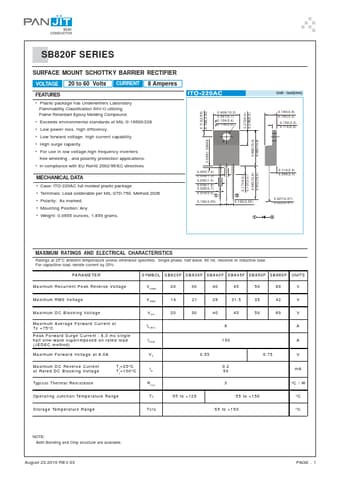

SB820F Datasheet, Rectifier, PAN JIT

SB820F Features

• Rectifier
• Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
• Exceeds environmental standards of MI

PDF File Details

Part number:

SB820F

Manufacturer:

PAN JIT

File Size:

45.47kb

Download:

📄 Datasheet

Description:

Surface mount schottky barrier rectifier.

SB820F Application

• Applications
• In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
• Case: ITO-220AC full molded plastic package
