SB830F - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the SB830F, a member of the SB820F SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER family.

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Low power loss, high efficiency.
  • Low forward voltage, high current capability.
  • High surge capacity.
  • For use in low voltage,high frequency inverters free wheeling , and polarlity protection.

📥 Download Datasheet

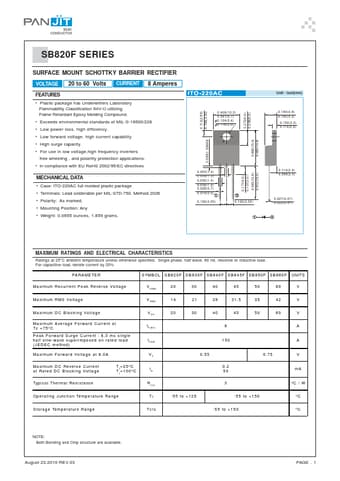

Datasheet preview – SB830F

Datasheet Details

Part number SB830F
Manufacturer PAN JIT
File Size 45.47 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SB830F Datasheet
Additional preview pages of the SB830F datasheet.

📁 Similar Datasheet

  • SB830F - 8.0A SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB830F - 8.0A Schottky Barrier Rectifier (MAYLOON)
  • SB830FCT - 10A Dual Schottky Barrier Rectifier (SINLOON)
  • SB830FCT - 8.0A DUAL SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB830FCT - ISOLATION SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
  • SB830 - 8.0A SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB830 - SCHOTTKY BARRIER RECTIFIERS (Pan Jit International Inc.)
  • SB830 - SCHOTTKY BARRIER RECTIFIER (KD)
  • SB830 - Schottky Barrier Rectifiers (LRC)
  • SB830 - Schottky barrier rectifiers diodes (Semikron)
Other Datasheets by PAN JIT
  • SB830D - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB820D - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB820F - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB840D - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB840F - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB845F - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB850D - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • SB850F - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
SB820F SERIES SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 20 to 60 Volts CURRENT 8 Amperes FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • Low power loss, high efficiency. • Low forward voltage, high current capability • High surge capacity. • For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. • In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA • Case: ITO-220AC full molded plastic package • Terminals: Lead solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Mounting Position: Any • Weight: 0.0655 ounces, 1.859 grams. 0.272(6.9) 0.248(6.3) 0.112(2.85) 0.100(2.
