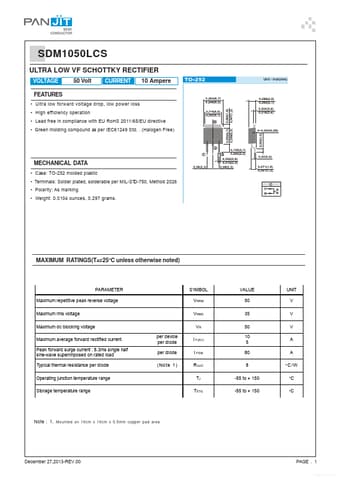

SDM1050LCS
FEATURES
- Ultra low forward voltage drop, low power loss
- High efficiency operation
- Lead free in pliance with EU Ro HS 2011/65/EU directive
- Green molding pound as per IEC61249 Std. . (Halogen Free)
50 Volt
CURRENT
10 Ampere
MECHANICAL DATA
- Case: TO-252 molded plastic
- Terminals: Solder plated, solderable per MIL-ST D-750, Method 2026
- Polarity: As marking
- Weight: 0.0104 ounces, 0.297 grams.
MAXIMUM RATINGS(TA=25o C unless otherwise noted)
PARAMETER Maximum repetitive peak reverse voltage Maximum rms voltage Maximum dc blocking voltage Maximum average forward rectified current Peak forward surge current : 8.3ms single half sine-wave superimposed on rated load Typical thermal resistance per diode Operating junction temperature range Storage temperature range per device per diode per diode ( No te 1 )
SYMBOL VRRM VRMS VR I F(AV) I FSM R JC TJ TSTG
VALUE 50 35 50 10 5 80 8 -55 to + 150 -55 to + 150
UNIT V V V A A
C /W o
C C o
Note : 1. Mounted on 10cm x 10cm x...
