SR33, SR32 MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SR33 Description

SR32 ~ SR36 MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 20 to 60 Volt CURRENT 3 Ampere .

SR33 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Low power loss, high efficiency
* High surge capacity
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free) M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR33, SR32. Please refer to the document for exact specifications by model.

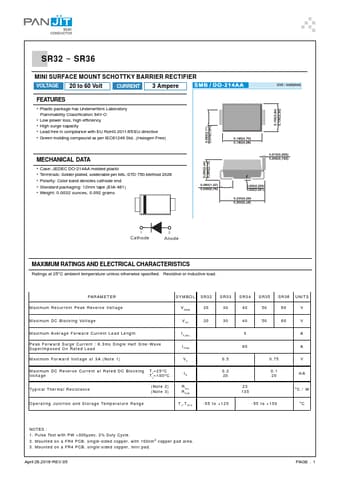

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SR33, SR32
Manufacturer
PAN JIT
File Size
281.12 KB
Datasheet
SR32-PANJIT.pdf
Description
MINI SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR33, SR32.
Please refer to the document for exact specifications by model.
