TB8S-08 MICRO SURFACE MOUNT GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

TB8S-08 Description

TB1S-08~TB10S-08 MICRO SURFACE MOUNT GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE 100~1000 Volts CURRENT 0.8 Ampers Recongnized File #E1399.

TB8S-08 Features

* Glass passivated chip junciton
* Ideally Suited for Automatic Assembly
* Save space on printed circuit boards
* Body Thick Very Thin

📥 Download Datasheet

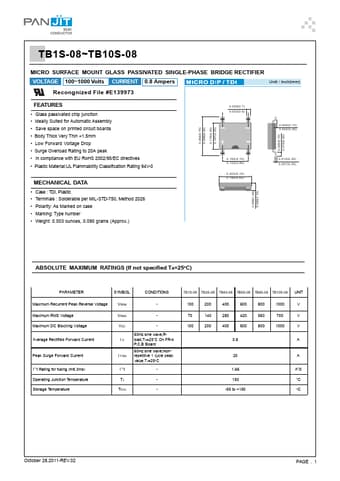

Preview of TB8S-08 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TB8S-08
Manufacturer
PAN JIT
File Size
154.93 KB
Datasheet
TB8S-08-PANJIT.pdf
Description
MICRO SURFACE MOUNT GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
