UF2A SURFACE MOUNT ULTRAFAST RECTIFIER

UF2A Description

UF2A~UF2M SURFACE MOUNT ULTRAFAST RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 2 Ampere .

UF2A Applications

* in order to optimize board space
* Easy pick and place
* Ultrafast recovery times for high efficiency
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Glass passivated junction
* Lead free in compliance with EU RoHS 2011/65/EU

📥 Download Datasheet

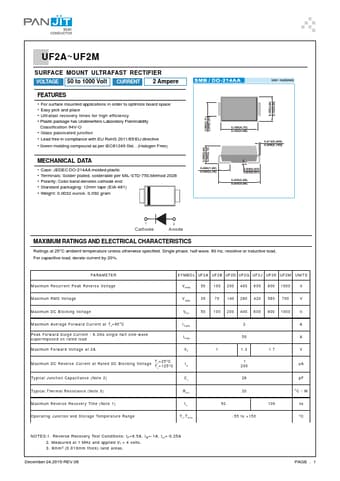

Preview of UF2A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UF2A
Manufacturer
PAN JIT
File Size
140.59 KB
Datasheet
UF2A-PANJIT.pdf
Description
SURFACE MOUNT ULTRAFAST RECTIFIER
