1N4150 - FAST SWITCHING SURFACE MOUNT DIODES

Datasheet Summary

Features

  • Fast switching Speed.
  • Surface Mount Package Ideally Suited For Automatic Insertion.
  • Silicon Epitaxal Planar Construction.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.

📥 Download Datasheet

Datasheet preview – 1N4150

Datasheet Details

Part number 1N4150
Manufacturer PANJIT
File Size 108.81 KB
Description FAST SWITCHING SURFACE MOUNT DIODES
Datasheet download datasheet 1N4150 Datasheet
Additional preview pages of the 1N4150 datasheet.

📁 Similar Datasheet

  • 1N4150 - HIGH SPEED SWITCHING DIODES (DC COMPONENTS)
  • 1N4150 - Small Signal Fast Switching Diodes (Vishay)
  • 1N4150 - FAST SWITCHING DIODE (SMC Diode)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (Rectron)
  • 1N4150 - SMALL SIGNAL SWITCHING DIODES (Sunmate)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1N4150-1 - SWITCHING DIODES (Compensated Deuices Incorporated)
  • 1N4150-1 - Silicon Switching Diode (MA-COM)
  • 1N4150-1 - SWITCHING DIODE (Microsemi)
  • 1N4150-1 - Silicon Switching Diodes (Aeroflex)
Other Datasheets by PANJIT

    Full PDF Text Transcription

    Click to expand full text

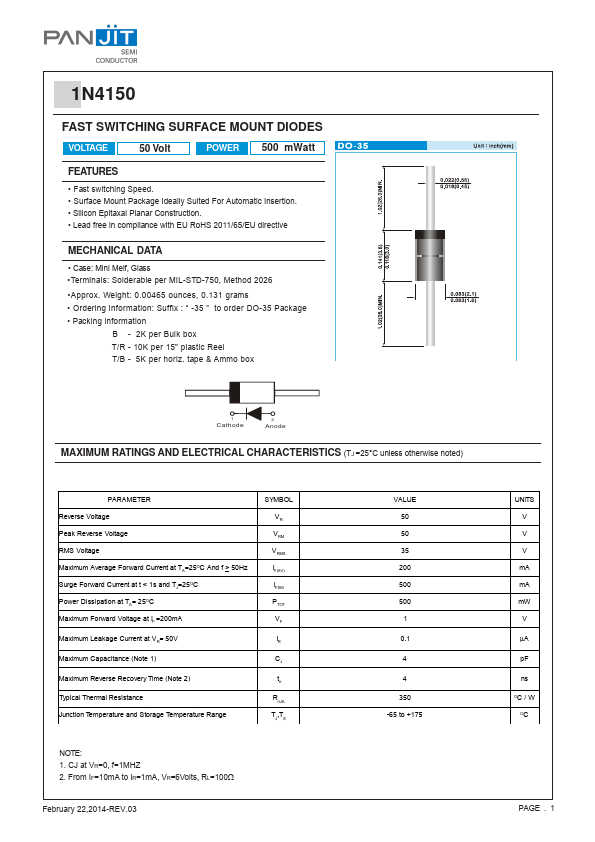

    1N4150 FAST SWITCHING SURFACE MOUNT DIODES VOLTAGE 50 Volt POWER 500 mWatt FEATURES • Fast switching Speed. • Surface Mount Package Ideally Suited For Automatic Insertion. • Silicon Epitaxal Planar Construction. • Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA • Case: Mini Melf, Glass •Terminals: Solderable per MIL-STD-750, Method 2026 •Approx. Weight: 0.00465 ounces, 0.131 grams • Ordering information: Suffix : “ -35 ” to order DO-35 Package • Packing information B - 2K per Bulk box T/R - 10K per 15" plastic Reel T/B - 5K per horiz.
