MCL4150 - FAST SWITCHING SURFACE MOUNT DIODES

Datasheet Summary

Features

Fast switching Speed.
Surface Mount Package Ideally Suited For Automatic Insertion.
Silicon Epitaxal Planar Construction.
In compliance with EU RoHS 2002/95/EC directives MICRO-MELF.

PANJIT

📥 Download Datasheet

Datasheet Details

Part number	MCL4150
Manufacturer	PANJIT
File Size	77.67 KB
Description	FAST SWITCHING SURFACE MOUNT DIODES
Datasheet	MCL4150 Datasheet

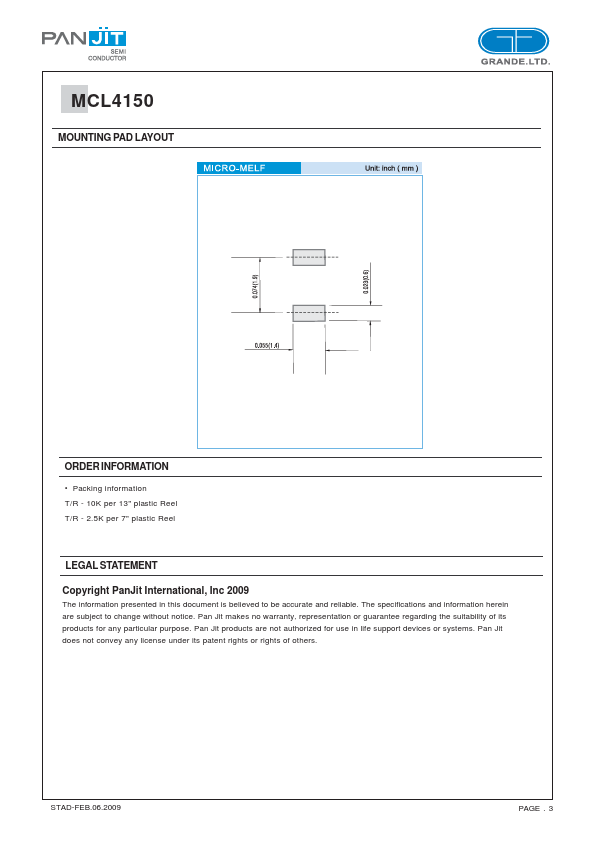

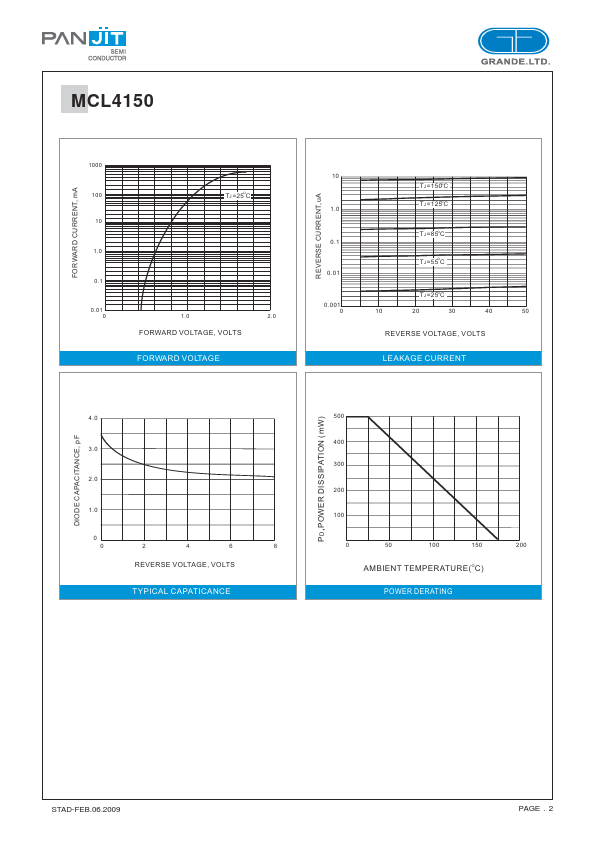

Additional preview pages of the MCL4150 datasheet.

📁 Similar Datasheet

MCL4150 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
MCL4151 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
MCL4151 - Silicon Epitaxial Planar Diode (TEMIC)
MCL4151 - Small Signal Fast Switching Diode (Vishay)
MCL4154 - Small Signal Fast Switching Diode (Vishay)
MCL4154 - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
MCL4148 - Small Signal Fast Switching Diodes (Vishay)
MCL4148 - SMD Rectifying Diode (Akyga)
MCL4148 - Micro MELF SWITCHING Diode (Rectron)
MCL4148 - Glass Sealed SMD Switching Diode (Formosa MS)

Other Datasheets by PANJIT

MCL4148 - FAST SWITCHING SURFACE MOUNT DIODES
MCL4448 - FAST SWITCHING SURFACE MOUNT DIODES

Full PDF Text Transcription

Click to expand full text

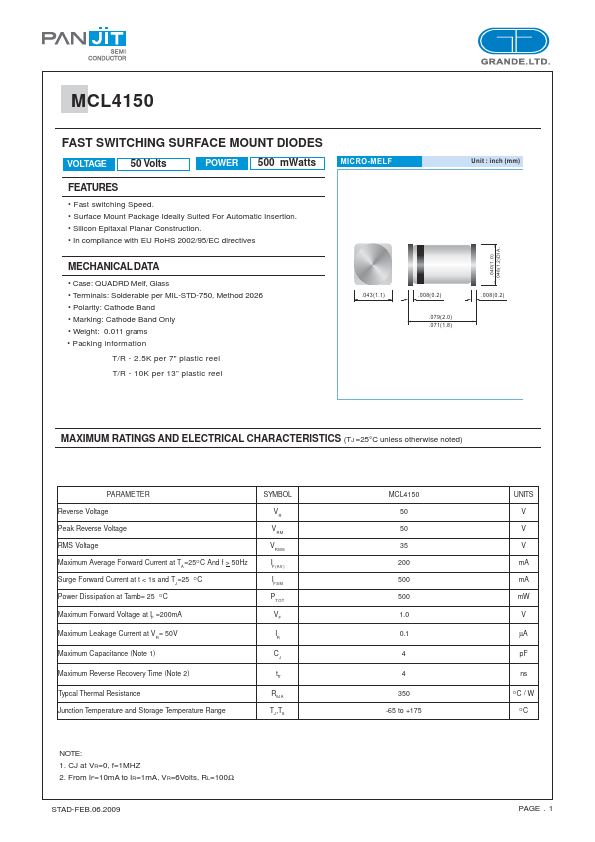

MCL4150 FAST SWITCHING SURFACE MOUNT DIODES VOLTAGE 50 Volts POWER 500 mWatts FEATURES • Fast switching Speed. • Surface Mount Package Ideally Suited For Automatic Insertion. • Silicon Epitaxal Planar Construction. • In compliance with EU RoHS 2002/95/EC directives MICRO-MELF MECHANICAL DATA • Case: QUADRD Melf, Glass • Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity: Cathode Band • Marking: Cathode Band Only • Weight: 0.011 grams • Packing information T/R - 2.5K per 7" plastic reel T/R - 10K per 13” plastic reel .043(1.1) Unit : inch (mm) .040(1.0) .048(1.2)DIA. .008(0.2) .079(2.0) .071(1.8) .008(0.
