MMBZ5242B - SURFACE MOUNT SILICON ZENER DIODES

This page provides the datasheet information for the MMBZ5242B, a member of the MMBZ5221B SURFACE MOUNT SILICON ZENER DIODES family.

Features

  • Planar Die construction.
  • 410mW Power Dissipation.
  • Zener Voltages from 2.4V~75V.
  • Ideally Suited for Automated Assembly Processes.
  • Lead free in compliance with EU RoHS 2.0.
  • Green molding compound as per IEC 61249 standard 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.006(0.15)MIN. 0.008(0.20) 0.003(0.08).

📥 Download Datasheet

Datasheet preview – MMBZ5242B

Datasheet Details

Part number MMBZ5242B
Manufacturer PANJIT
File Size 1.75 MB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet MMBZ5242B Datasheet

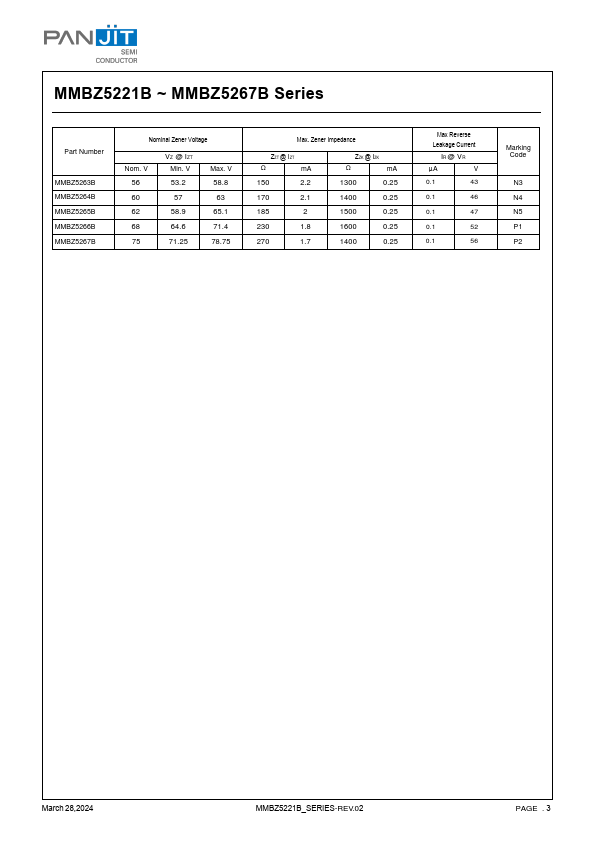

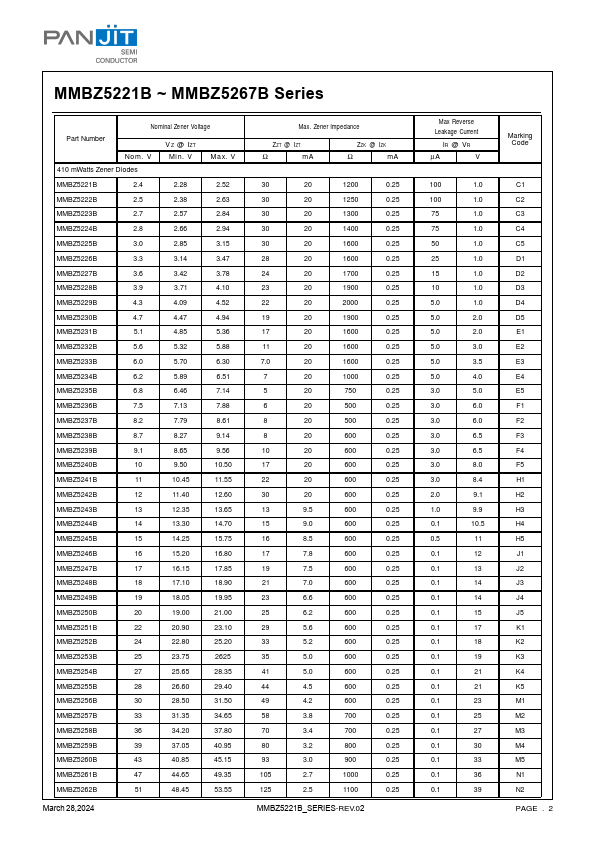

Additional preview pages of the MMBZ5242B datasheet.

📁 Similar Datasheet

  • MMBZ5242B - SILICON PLANAR ZENER DIODES (SEMTECH)
  • MMBZ5242B - SILICON PLANAR ZENER DIODES (CUMSUMI)
  • MMBZ5242B - 350mW SURFACE MOUNT ZENER DIODE (WON-TOP)
  • MMBZ5242B - 350mW SURFACE MOUNT ZENER DIODE (Diodes)
  • MMBZ5242B - Zener diode (Excel Semiconductor)
  • MMBZ5242B - Surface Mount Zener Diodes (WEITRON)
  • MMBZ5242B - 350mW Surface Mount Zener Diodes (TAITRON)
  • MMBZ5242B - 410 mW Zener Diode 2.4 to 39 Volts (Micro Commercial Components)
  • MMBZ5242B - SILICON EPITAXIAL PLANAR DIODE (KEC)
  • MMBZ5242B - Zener Voltage Regulator Diode (SeCoS)
Other Datasheets by PANJIT
  • MMBZ5240B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5241B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5243B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5244B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5245B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5246B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5247B - SURFACE MOUNT SILICON ZENER DIODES
  • MMBZ5248B - SURFACE MOUNT SILICON ZENER DIODES

Full PDF Text Transcription

Click to expand full text

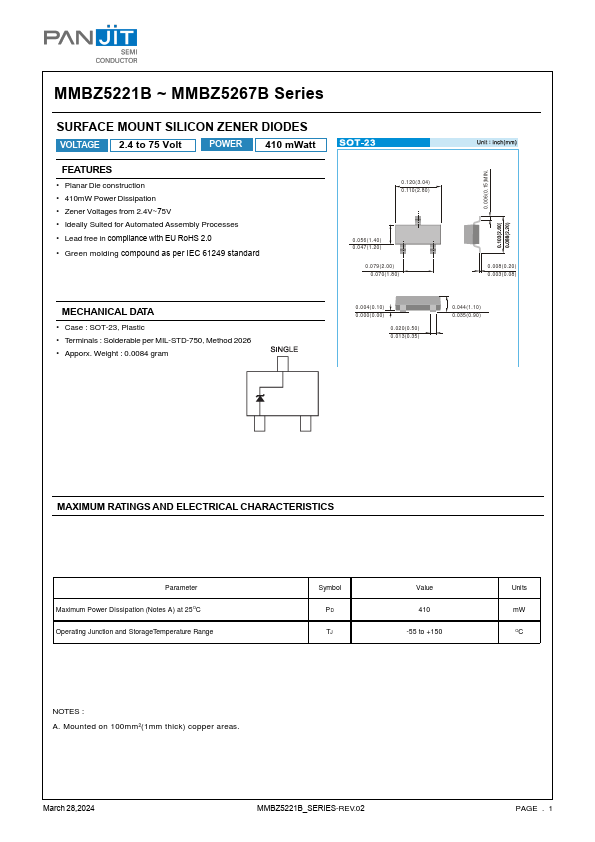

MMBZ5221B ~ MMBZ5267B Series SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 2.4 to 75 Volt POWER 410 mWatt FEATURES • Planar Die construction • 410mW Power Dissipation • Zener Voltages from 2.4V~75V • Ideally Suited for Automated Assembly Processes • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.006(0.15)MIN. 0.008(0.20) 0.003(0.08) MECHANICAL DATA • Case : SOT-23, Plastic • Terminals : Solderable per MIL-STD-750, Method 2026 • Apporx. Weight : 0.0084 gram 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.044(1.10) 0.035(0.
