MMBZ5253B, MMBZ5221B SURFACE MOUNT SILICON ZENER DIODES

PANJIT

Description

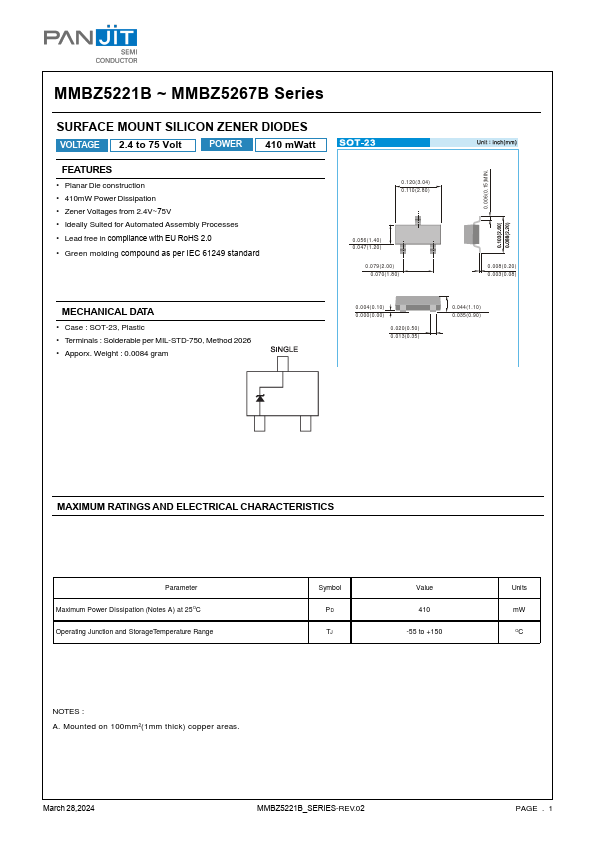

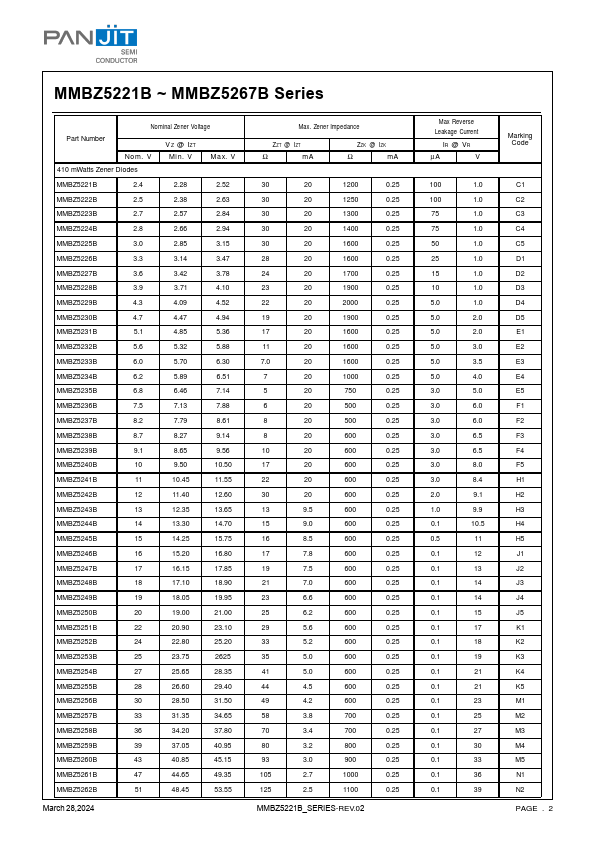

MMBZ5221B ~ MMBZ5267B Series SURFACE MOUNT SILICON ZENER DIODES VOLTAGE 2.4 to 75 Volt POWER 410 mWatt .

📥 Download Datasheet

MMBZ5253B Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBZ5253B, MMBZ5221B. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MMBZ5253B, MMBZ5221B
Manufacturer: PANJIT
File Size: 1.75 MB
Datasheet: MMBZ5221B-PANJIT.pdf
Description: SURFACE MOUNT SILICON ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: MMBZ5253B, MMBZ5221B.
Please refer to the document for exact specifications by model.

Features

* Planar Die construction
* 410mW Power Dissipation
* Zener Voltages from 2.4V~75V
* Ideally Suited for Automated Assembly Processes
* Lead free in compliance with EU RoHS 2.0
* Green molding compound as per IEC 61249 standard 0.120(3.04) 0.110(2.80)
