P1CH14A, P1CH3.3A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

PANJIT

📥 Download Datasheet

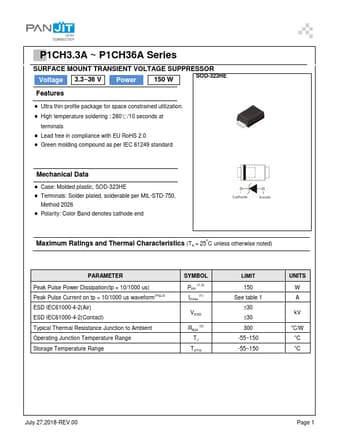

P1CH14A Datasheet Preview — This datasheet PDF includes multiple part numbers: P1CH14A, P1CH3.3A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	P1CH14A, P1CH3.3A
Manufacturer	PANJIT
File Size	274.39 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P1CH3.3A-PANJIT.pdf
Note	This datasheet PDF includes multiple part numbers: P1CH14A, P1CH3.3A. Please refer to the document for exact specifications by model.

P1CH14A Product details

Features

Ultra thin profile package for space constrained utilization.
High temperature soldering : 260℃/10 seconds at terminals.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard Mechanical Data.
Case: Molded plastic, SOD-323HE.
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity: Color Band denotes cathode end Maximum Ratings and Thermal Characteristics (TA = o 25 C unless otherwise noted).
