P1CH33A, P1CH3.3A Datasheet - PANJIT

P1CH33A, P1CH3.3A, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

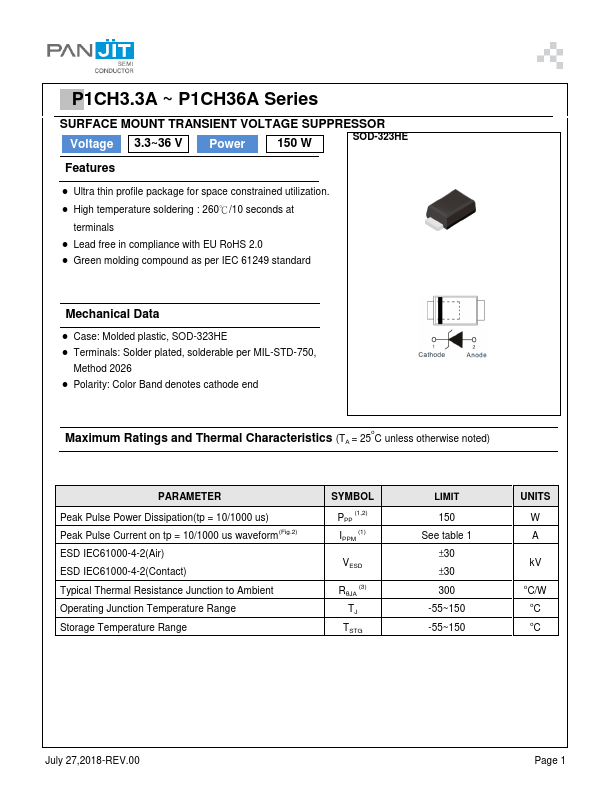

PP1CH3.3A ~ P1CH36A Series SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Voltage 3.3~36 V Power 150 W SOD-323HE .

P1CH3.3A-PANJIT.pdf

P1CH33A Datasheet Preview — This datasheet PDF includes multiple part numbers: P1CH33A, P1CH3.3A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P1CH33A, P1CH3.3A

Manufacturer:

PANJIT

File Size:

274.39 KB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: P1CH33A, P1CH3.3A.
Please refer to the document for exact specifications by model.

Features

* Ultra thin profile package for space constrained utilization.
* High temperature soldering : 260℃/10 seconds at terminals
* Lead free in compliance with EU RoHS 2.0
* Green molding compound as per IEC 61249 standard Mechanical Data
* Case: Molded plastic, SOD-323HE
* Term

Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applicat
