EPICL322513, EPICLxxxxxxx Datasheet - PCA ELECTRONICS

EPICL322513 Multilayer Chip Inductors

ELECTRONICS INC. Multilayer Chip Inductors EPICL Type www.DataSheet4U.com Applications : Mother Boards, CD ROM, Hard Disk Drivers, Wireless Phones, Pagers and other similar devices Specifications : Operating/Storage Temperature : -55°C to +125°C Terminal : Ag/Ni/Sn Material : Ferrite Product Identification EPICL Tolerance Inductance Dimensions Product Code : Inductance Tolerance (G = 2%, J = 5%, K = 10%, M = 20%) .078 ± .019 (2.00 ± .500) .039 (1.00) .512 ± .019 (13.00 ± .500) A± .079 (.

EPICLxxxxxxx_PCAELECTRONICS.pdf

This datasheet PDF includes multiple part numbers: EPICL322513, EPICLxxxxxxx. Please refer to the document for exact specifications by model.

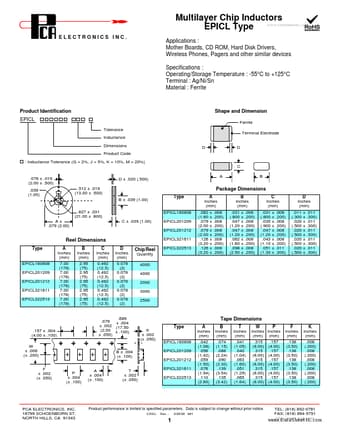

EPICL322513 Datasheet Preview Page 2 EPICL322513 Datasheet Preview Page 3

Datasheet Details

Part number:

EPICL322513, EPICLxxxxxxx

Manufacturer:

PCA ELECTRONICS

File Size:

65.23 KB

Description:

Multilayer chip inductors.

Note:

This datasheet PDF includes multiple part numbers: EPICL322513, EPICLxxxxxxx.
Please refer to the document for exact specifications by model.
