EPT7003G - Common Mode Choke

PCA Electronics

Datasheet Details

Part number	EPT7003G
Manufacturer	PCA Electronics
File Size	190.86 KB
Description	Common Mode Choke
Datasheet	EPT7003G Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by PCA Electronics

Part Number	Description
EPT7003	Common Mode Choke
EPT7000	16 Pin SMD Adapter For Token Ring
EPT7001	4/16 MBPS Token Ring 16 Pin Modules For Transmit And Receive
EPT7001G	4/16 MBPS Token Ring 16 Pin Modules For Transmit And Receive
EPT7002	4/16 MBPS Token Ring 24 Pin Module For Transmit And Receive

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

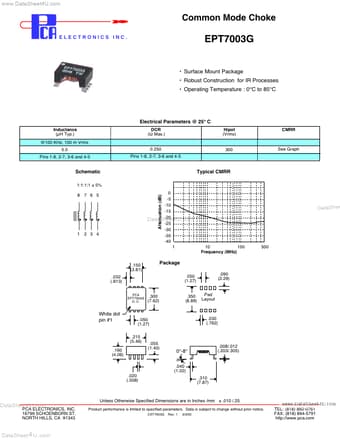

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC. EPT7003G • Surface Mount Package • Robust Construction for IR Processes • Operating Temperature : 0°C to 85°C Electrical Parameters @ 25° C Inductance (µH Typ.) @100 KHz, 100 m Vrms 5.0 Pins 1-8, 2-7, 3-6 and 4-5 0.250 Pins 1-8, 2-7, 3-6 and 4-5 300 See Graph DCR (Ω Max.) Hipot (Vrms) CMRR Schematic 1:1:1:1 ± 5% Attenuation (dB) 8 7 6 5 0 -5 -10 -15 -20 DataSheet4U.com -25 -30 -35 -40 1 Typical CMRR DataShee 1 2 3 4 10 100 Frequency (MHz) 500 .150 (3.81) .032 (.813) PCA EPT7003G D. C. Package .050 (1.27) Pad Layout .090 (2.29) .300 (7.62) .350 (8.89) White dot pin #1 .050 (1.27) .215 (5.46) .030 (.762) .160 (4.06) .055 (1.40) 0°-8° .040 (1.02) .008/.012 (.203/.305) .020 (.508) .310 (7.
