P6CU-xxxxZ Datasheet - PEAK electronics

P6CU-xxxxZ 1KV ISOLATED 1W UNREGULATED DUAL OUTPUT SIP7

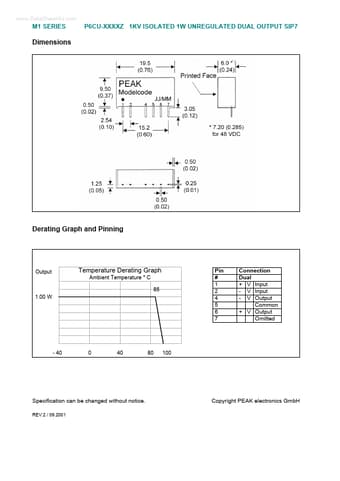

www.DataSheet4U.com M1 SERIES P6CU-XXXXZ 1KV ISOLATED 1W UNREGULATED DUAL OUTPUT SIP7 Dimensions Derating Graph and Pinning Output Temperature Derating Graph Ambient Temperature ° C 85 1.00 W Pin # 1 2 4 5 6 7 Connection Dual + V Input - V Input - V Output Common + V Output Omitted - 40 0 40 80 100 Specification can be changed without notice. REV:2 / 09.2001 Copyright PEAK electronics GmbH .

P6CU-xxxxZ_PEAKelectronics.pdf

Preview of P6CU-xxxxZ PDF
P6CU-xxxxZ Datasheet Preview Page 2

Datasheet Details

Part number:

P6CU-xxxxZ

Manufacturer:

PEAK electronics

File Size:

225.74 KB

Description:

1kv isolated 1w unregulated dual output sip7.
