P5300A, MOS Schottky Rectifier

PFC Device Corporation P5300A 5A 300V MOS Schottky Rectifier Major ratings and characteristics Characteristics IF(AV) Rectangular Waveform VRRM VF.

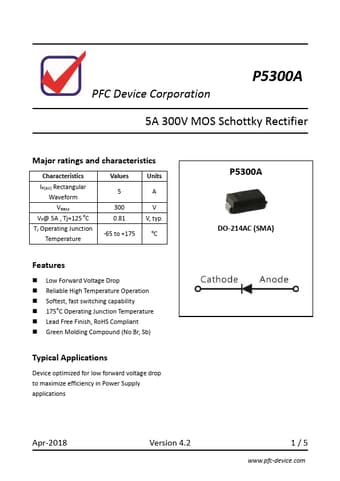

datasheet Preview Page 1 from Datasheet4u.com

P5300A-PFCDeviceCorporation.pdf

P5300A Datasheet Preview — Preview of P5300A PDF

Datasheet Details

Part number:

P5300A

Manufacturer:

PFC Device Corporation

File Size:

639.66 KB

Description:

MOS Schottky Rectifier

Features

* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Softest, fast switching capability
* 175oC Operating Junction Temperature
* Lead Free Finish, RoHS Compliant

Applications

* Device optimized for low forward voltage drop to maximize efficiency in Power Supply applications P5300A DO-214AC (SMA) Apr-2018 Version 4.2 1/5 www. pfc-device. com Characteristics P5300A 1. Characteristics Maximum Ratings Characteristics ( TA = 25 oC unless otherwise specified ) Parameter
