PTA2L100

Schottky Rectifier

Download Datasheet (530.82 KB)

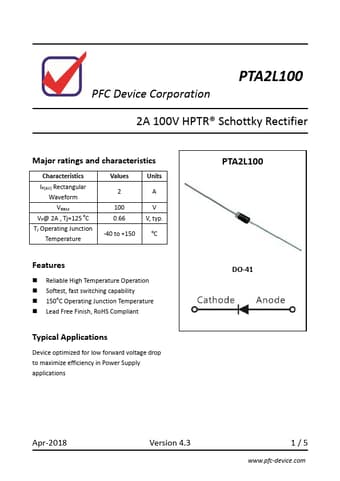

PTA2L100 Datasheet Preview — Preview of PTA2L100 Datasheet

Datasheet Details

Part number:

PTA2L100

Manufacturer:

PFC Device

File Size:

530.82 KB

Description:

Schottky rectifier.
PFC Device Corporation PTA2L100 2A 100V HPTR® Schottky Rectifier Major ratings and characteristic.
s Characteristics IF(AV) Rectangular Waveform VRRM VF@ 2A , Tj=125 oC TJ Operating Junction Tempera.

✔ PTA2L100 Features

Reliable High Temperature Operation
Softest, fast switching capability
150oC Operating Junction Temperature
Lead Free Finish, RoHS Compliant Typical Applications

✔ PTA2L100 Application

Device optimized for low forward voltage drop to maximize efficiency in Power Supply applications PTA2L100
