0805B104xxx - Multilayer Ceramic Chip Capacitors

This page provides the datasheet information for the 0805B104xxx, a member of the 0805B104K500N Multilayer Ceramic Chip Capacitors family.

📥 Download Datasheet

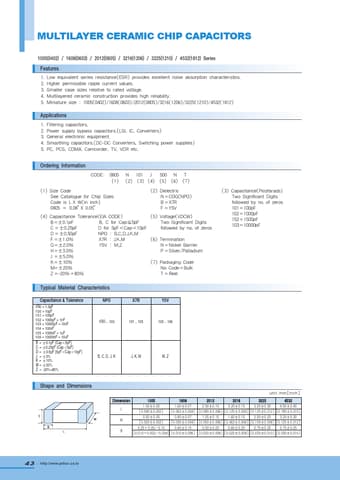

Datasheet preview – 0805B104xxx

Datasheet Details

Part number 0805B104xxx
Manufacturer PILKOR Electronics
File Size 135.80 KB
Description Multilayer Ceramic Chip Capacitors
Datasheet download datasheet 0805B104xxx Datasheet
Additional preview pages of the 0805B104xxx datasheet.

📁 Similar Datasheet

  • 0805B104xxx - Multilayer Ceramic Chip Capacitors (American Accurate Components)
  • 0805B104xxx - Multilayer Ceramic Chip Capacitors (Novacap)
  • 0805B104K500N - Multilayer Ceramic Chip Capacitors (Novacap)
  • 0805B102K500CT - Multilayer Ceramic Chip Capacitors (Walsin Technology)
  • 0805Bxxxxxxxxx - Multilayer Ceramic Chip Capacitors (Walsin Technology)
  • 0805 - Double Sided Chip Resistor (TT electronics)
  • 0805 - Multilayer Chip Ceramic Capacitor (HITANO)
  • 0805 - Ultra Low Profile Common Choke (Coilcraft)
  • 0805 - Surface-Mount Ceramic Multilayer Capacitors (YAGEO)
  • 08052R332M9B20D - Surface Mount Ceramic Multilayer Capacitors (Yageo)
Other Datasheets by PILKOR Electronics

Full PDF Text Transcription

Click to expand full text
MULTILAYER CERAMIC CHIP CAPACITORS Capacitance & Tolerance 1R0 = 1.0pF 100 = 10pF 101 = 100pF 102 = 1000pF = 1nF 103 = 10000pF = 10nF 104 = 100nF 105 = 1000nF = 1uF 106 = 10000nF = 10uF B = 0.1pF (Cap 5pF) C = 0.25pF (Cap 5pF) D = 0.5pF (5pF Cap 10pF) J = 5% K = 10% M = 20% Z = -20%+80% NPO X7R Y5V 1RO ~ 103 101 ~ 105 103 ~ 106 B, C, D, J, K J, K, M M, Z PILKOR ELECTRONICS CO., LTD. Dielectric NPO EIA Cap Size 1005(0402) 1608(0603) 2012(0805) 3216(1206) 3225(1210) 4532(1812) Code VDCW 10V 16V 25V 50V 10V 16V 25V 50V 10V 16V 25V 50V 10V 16V 25V 50V 10V 16V 25V 50V 10V 16V 25V 50V 0R5 0.5pF 1R0 1 1R2 1.2 1R5 1.5 1R8 1.8 2R2 2.2 2R7 2.7 3R3 3.3 3R9 3.9 4R7 4.7 5R6 5.6 6R8 6.8 8R2 8.
