PSP10N70 - 700V N-ch Planar MOSFET

PIP

📥 Download Datasheet

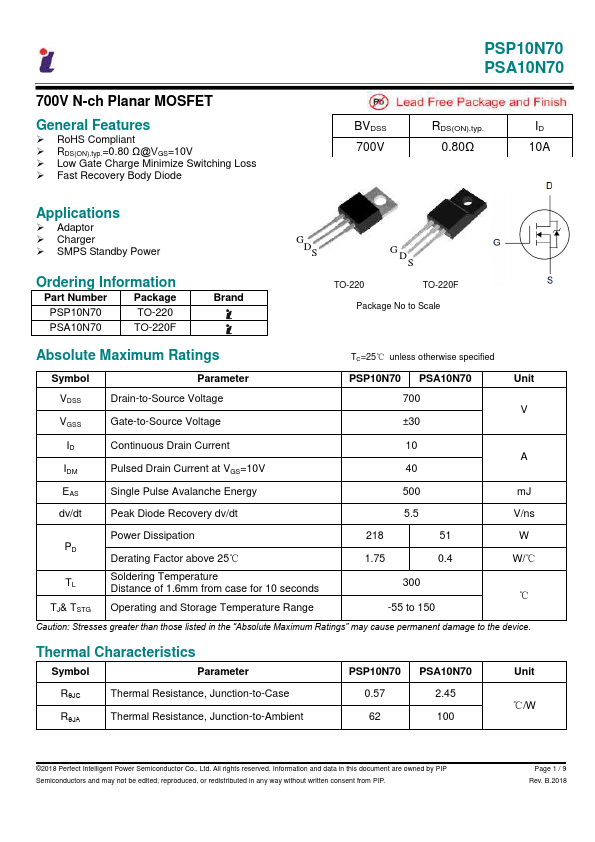

PSP10N70 Datasheet Preview — Preview of PSP10N70 PDF

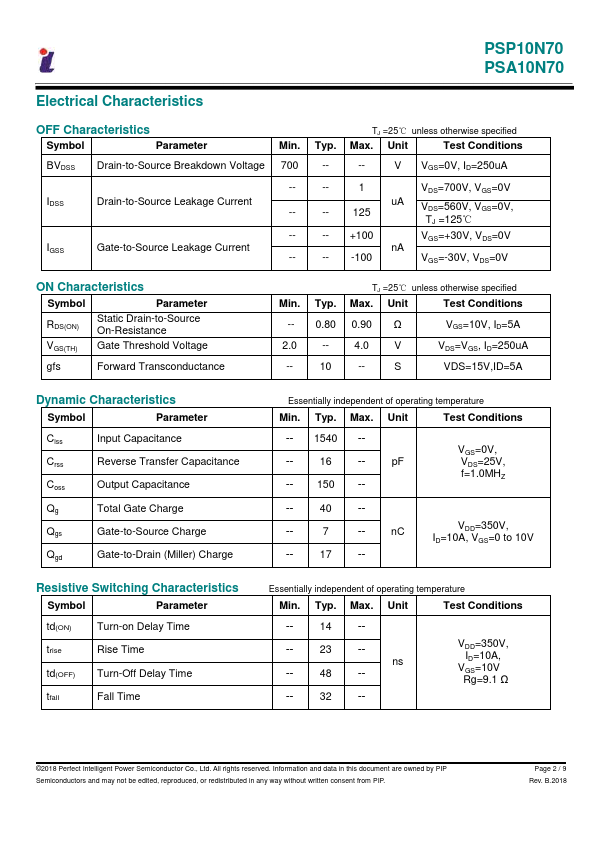

datasheet Preview Page 2

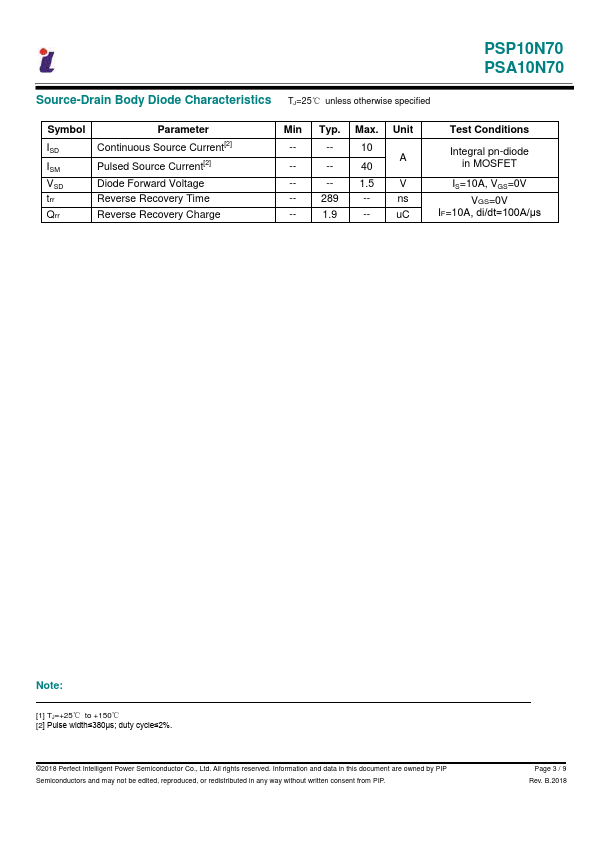

datasheet Preview Page 3

Datasheet Details

Part number	PSP10N70
Manufacturer	PIP
File Size	696.04 KB
Description	700V N-ch Planar MOSFET
Datasheet	PSP10N70-PIP.pdf

PSP10N70 Product details

Features

RoHS Compliant.
RDS(ON),typ. =0.80 Ω@VGS=10V.
Low Gate Charge Minimize Switching Loss.
Fast Recovery Body Diode PSP10N70 PSA10N70 BVDSS 700V RDS(ON),typ. 0.80Ω ID 10A.
