PTA07N65B Datasheet, Mosfet, PIP

PTA07N65B Features

  • Mosfet
  • RoHS Compliant
  • RDS(ON),typ.=1.2 Ω@VGS=10V
  • Low Gate Charge Minimize Switching Loss
  • Fast Recovery Body Diode PTA07N65B BVDSS 650V RDS(ON),Typ. 1

PDF File Details

Part number:

PTA07N65B

Manufacturer:

PIP

File Size:

844.83kb

Download:

📄 Datasheet

Description:

650v n-ch planar mosfet.

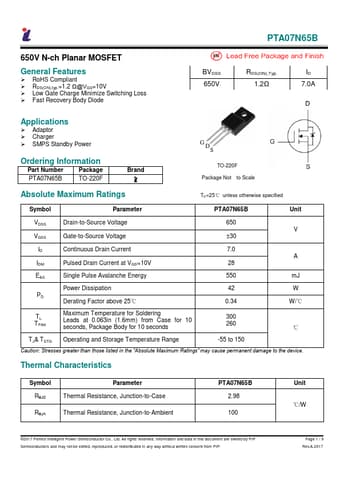

Datasheet Preview: PTA07N65B 📥 Download PDF (844.83kb)
Page 2 of PTA07N65B Page 3 of PTA07N65B

PTA07N65B Application

  • Applications
  • Adaptor
  • Charger
  • SMPS Standby Power Ordering Information Part Number Package PTA07N65B TO-220F Brand

TAGS

PTA07N65B
650V
N-ch
Planar
MOSFET
PIP
