PTA10N80 800V N-Channel MOSFET

PTA10N80 Description

800V N-Channel MOSFET General .

PTA10N80 Features

* Proprietary New Planar Technology
* RDS(ON),typ. =1.0 Ω@VGS=10V
* Low Gate Charge Minimize Switching Loss

PTA10N80 Applications

* ATX Power
* LCD Panel Power Ordering Information Part Number Package PTP10N80 TO-220 PTA10N80 TO-220F Brand GDS GDS TO-220 TO-220F Package Not to Scale Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGSS ID ID @ Tc =100℃ IDM EAS dv/dt PD TL TPAK Para

📥 Download Datasheet

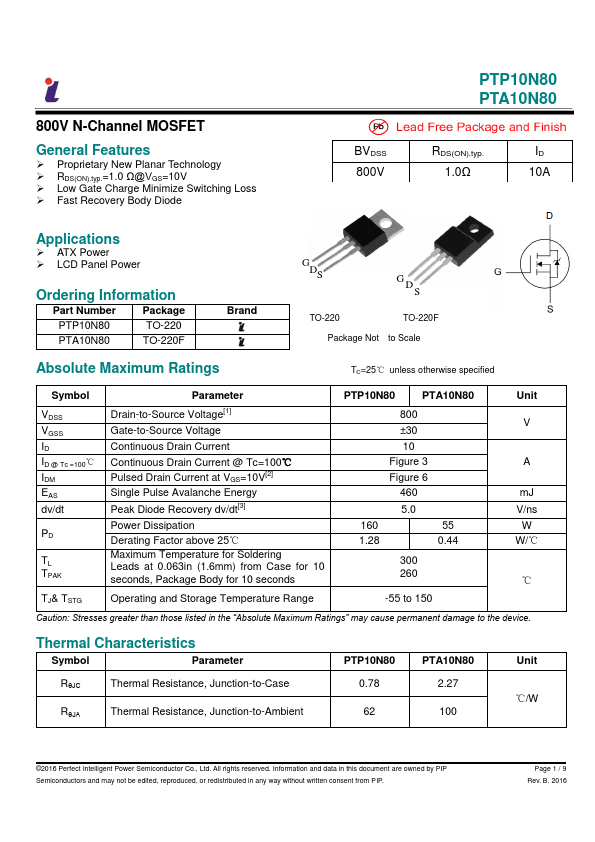

Preview of PTA10N80 PDF

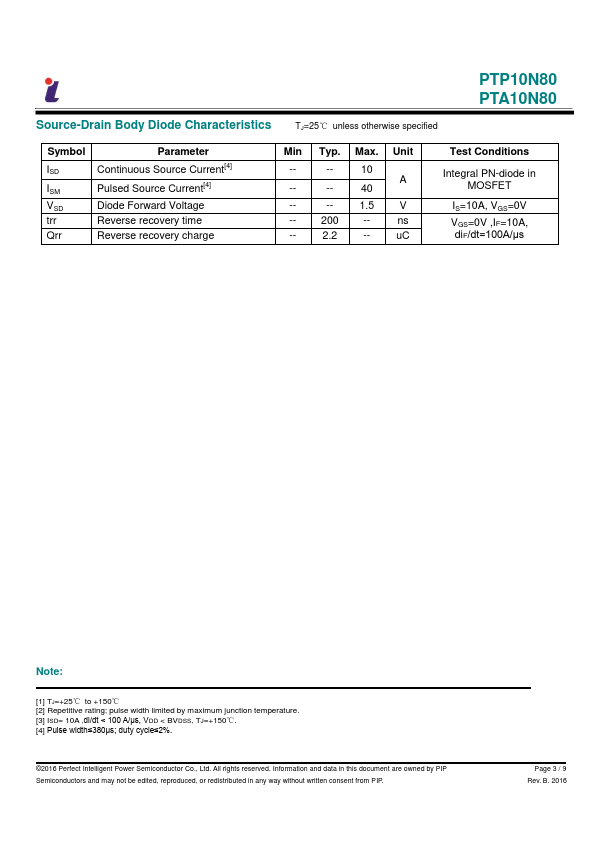

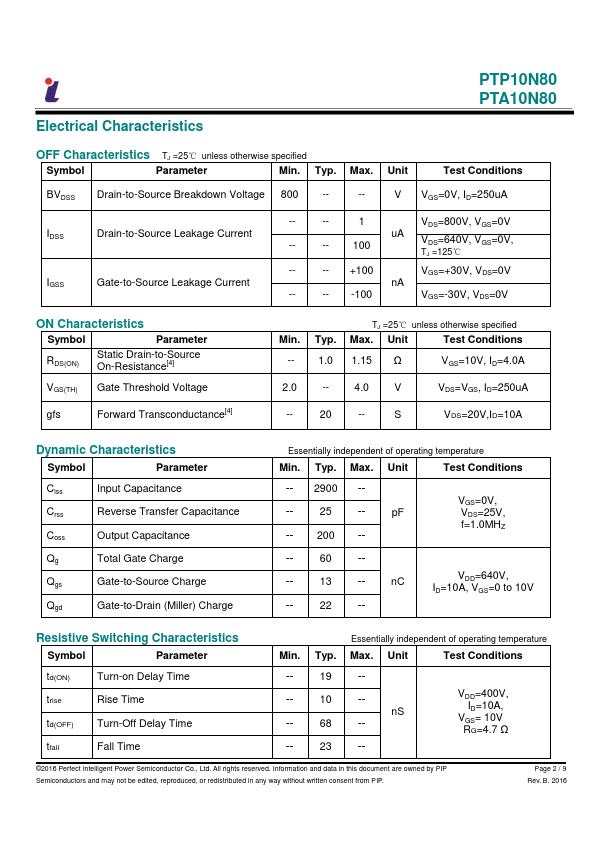

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PTA10N80
Manufacturer
PIP
File Size
867.86 KB
Datasheet
PTA10N80-PIP.pdf
Description
800V N-Channel MOSFET
